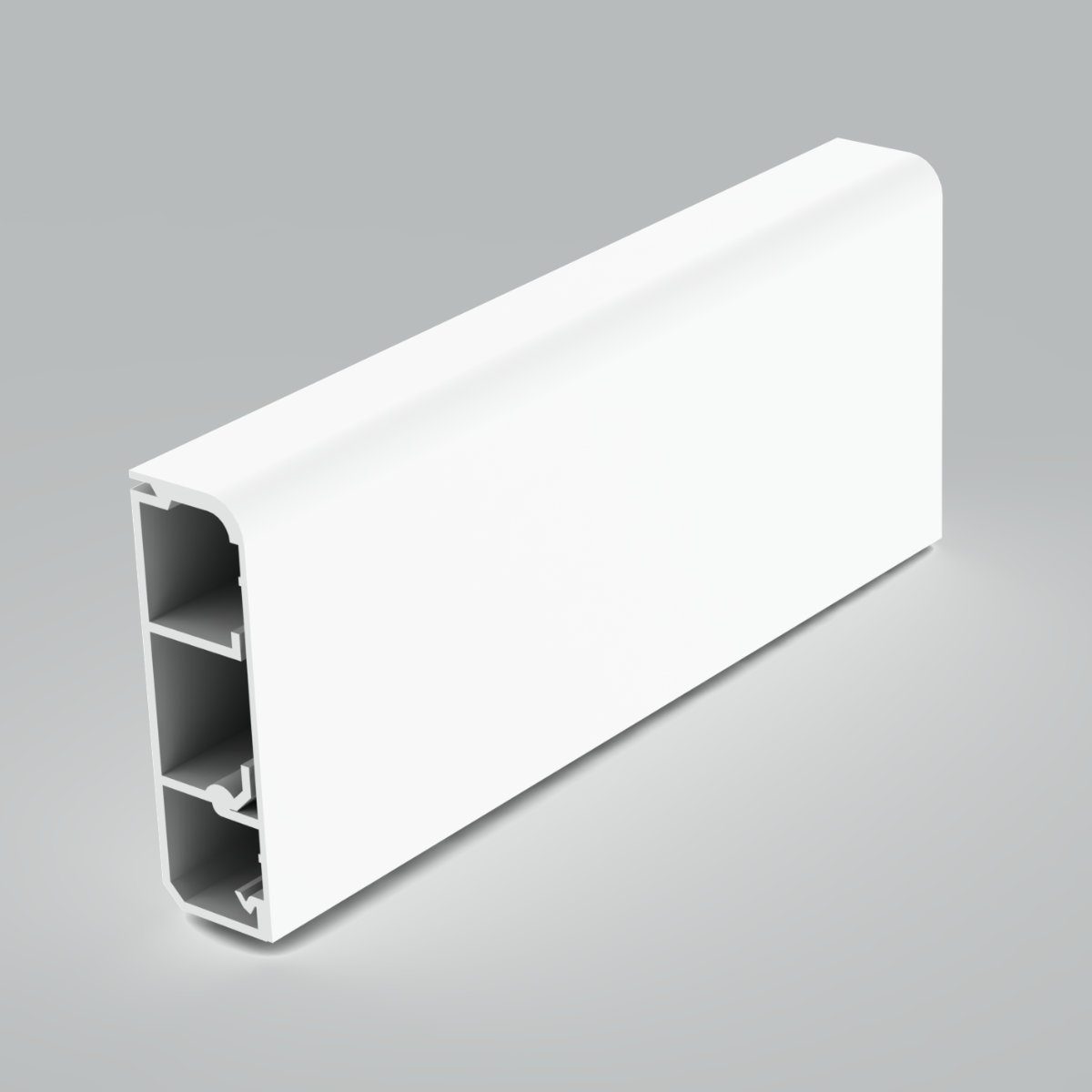

illustrative picture
To download 3D models, please login or create an account and request access.
LP80X25_EN
| EAN code | 8595057609471 |
| Customs code | 39259020 |
| წონა | 0,6510 kg/m |
| Colour | white |
| Material | PVC |
| Leadless material | yes |
| Self-extinguishing | 30 s |
| Temperature resistance | -5 - 60 °C |
| Flaming loop test | 850 °C |
| Impact resistance | 2 J |
| Antibacterial | yes |

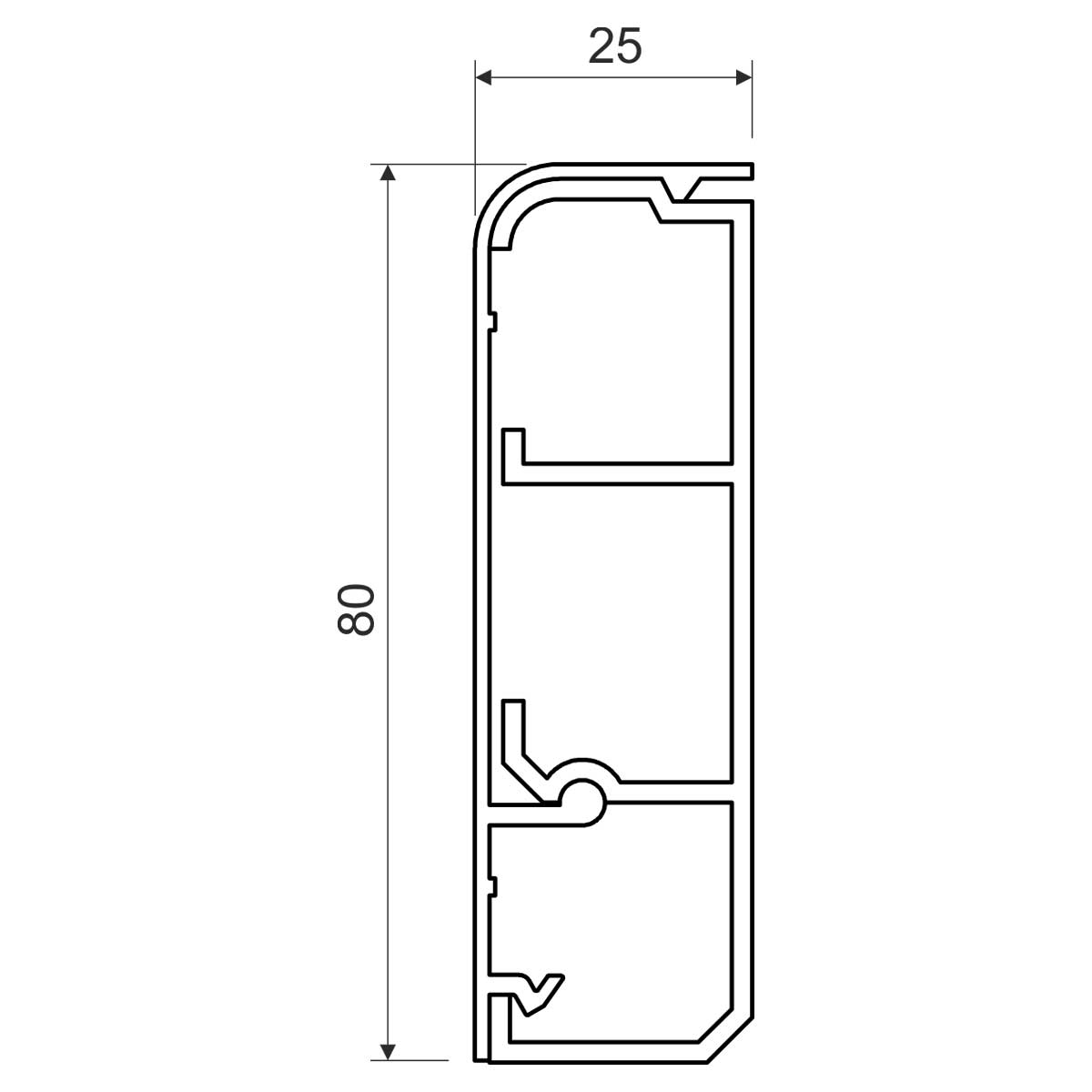

| Width | 80 mm |
| Height | 25 mm |
| Length | 2 m |
| Inside area | 450, 520, 400 |
| Allowance The trunkings are available in lengths with a tolerance of ± 0.5% at 20 ° C. | |
| Area with explosion danger Electro-installation trunking (insertive, rectangular, halogen-free) and parapet canals with accesories can be installed in zones with explosion hazard of flammable gases (zone 2) and with the risk of explosion of flammable dusts (zone 22), installation must comply with EN 60079-14. | |
| Fire reaction class of underlying material | A1 - F |
| Allows to install double-socket | yes |
| Protection types | IP 40 |
| Standards | ČSN EN 50 085-1 |
| Package description | package - cardboard |

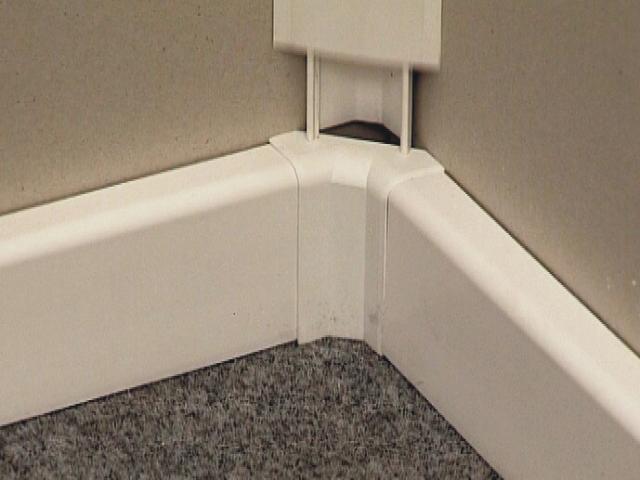

It is designed for installation in the corner between the floor and wall.
