EAN code8595057660311
Customs code73269098
წონა0,21 kg/pcs
Surface finishHot Dip Galvanized
Temperature resistance-50 - 150 °C
Funcionality in fireP90-R, E90, PS90
StandardsČSN EN 61537
Fire resistance standardsČSN 73 0895, DIN 4102-12, STN 92 0205
Thickness of metal sheet1 mm
Quantity of screws for connecting4

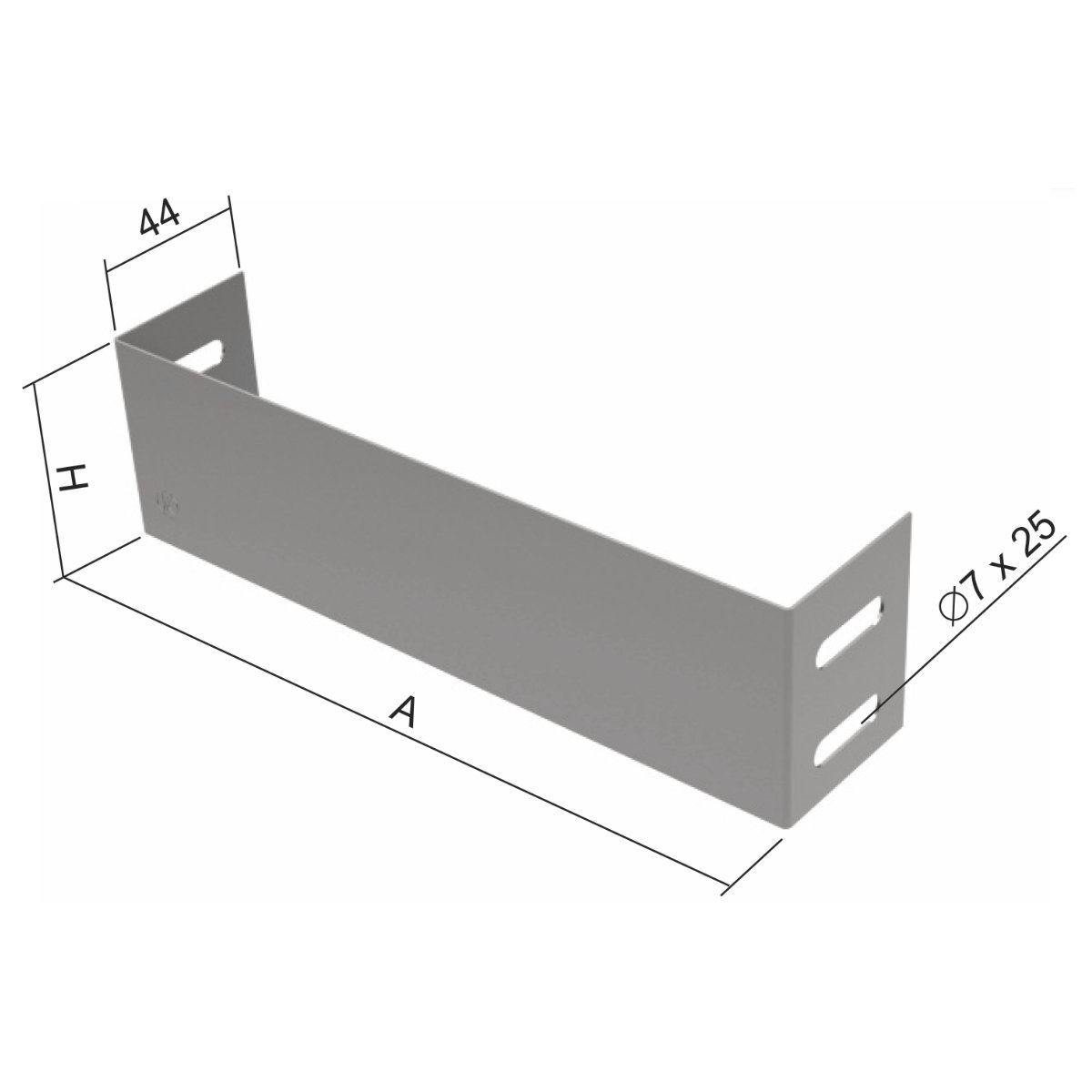

Dimension A297 mm
Dimension H55 mm
For width of cable tray300 mm
For height of cable tray60 mm

The fastening of the joint is performed with the bolts NSM 6X10.

Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
