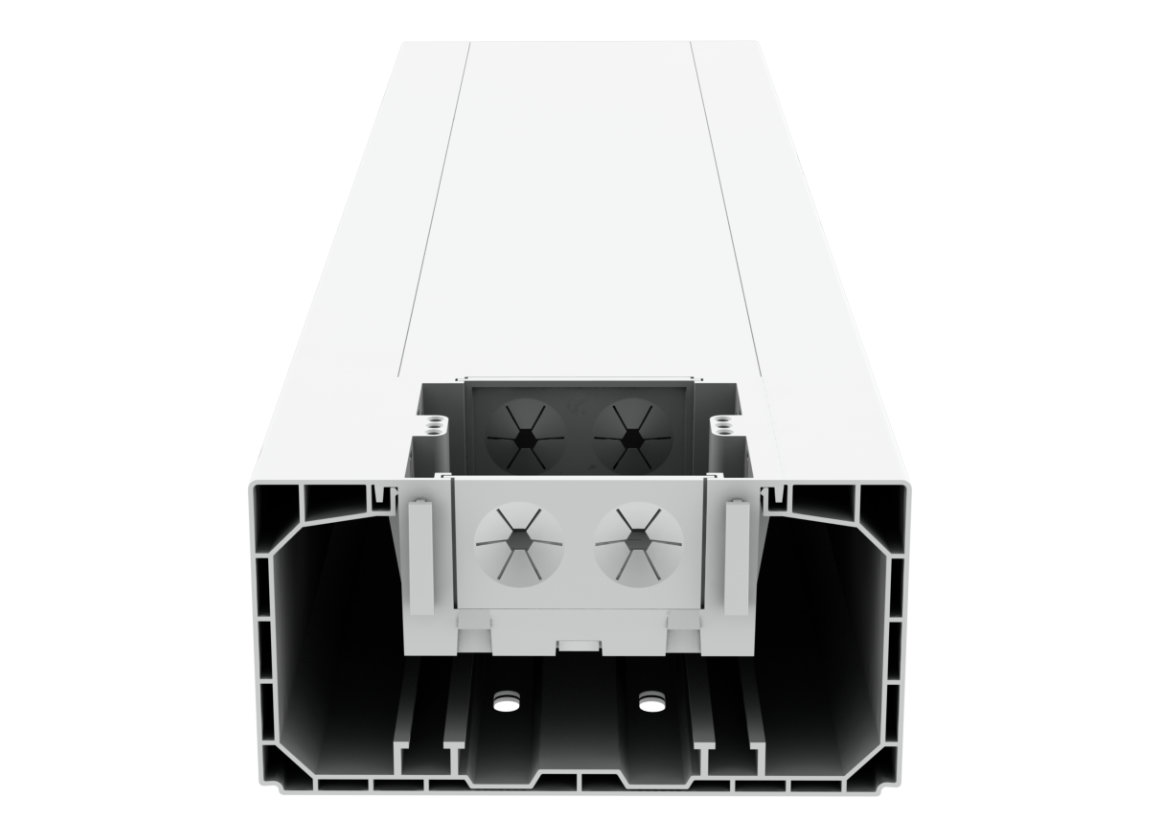

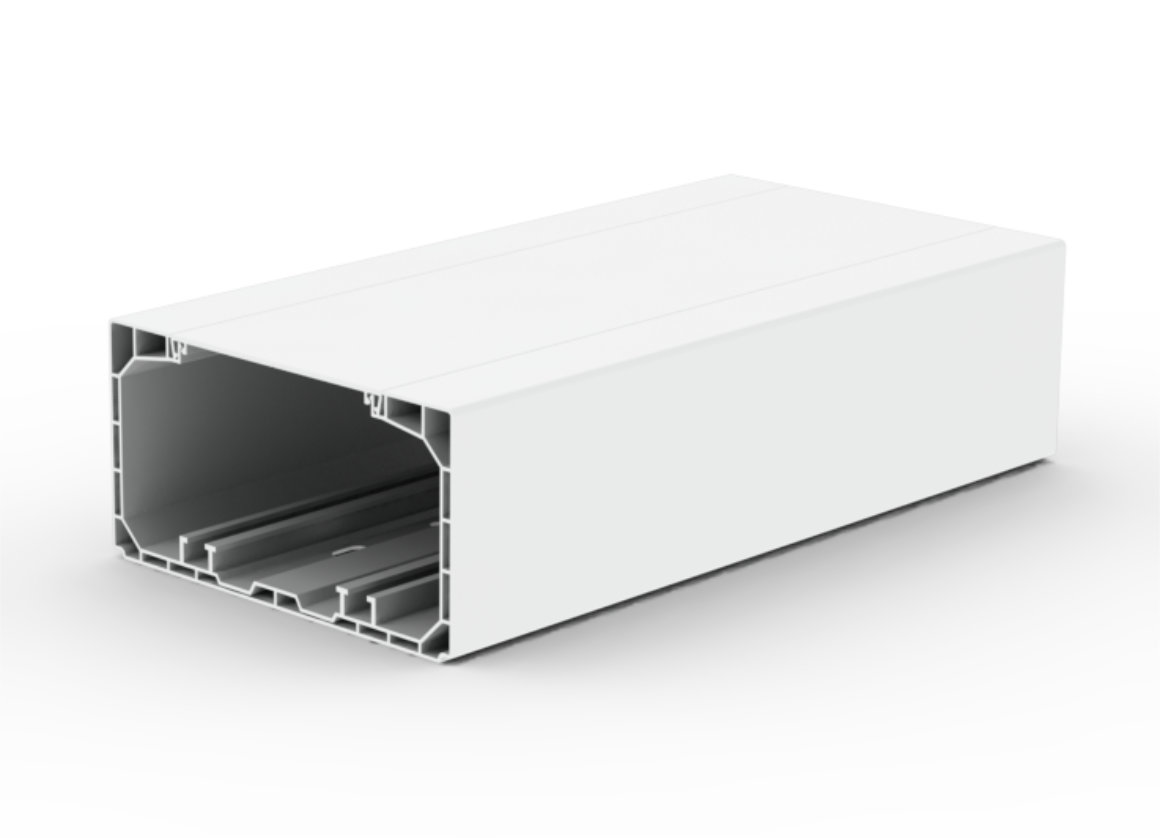

Another parapet trunking from the new 65 mm depth range is 130 mm wide. The parapet trunking has all the features of the series and has 80 mm wide lid centered in the front wall with which the lid is in one flat. It´s possible to use instruments of various sizes installed in the enclosed instrument box KP 80 PK. The trunking is also compatible with the open box KP PK.
The double wall of the trunking is a guarantee of high durability. Currently adjustable inner and outer corners are standard. Shielding channels can electromagnetically separate power and data lines.
Dimensions: 130x65 mm
Installation: on all kinds of bases with flammability level A1 to F
Material: PVC self-extinguishing
Packaging: 2 m / 6 m, in carton
Temperature resistance: -5 to + 60 °C
Color: white RAL 9003
Accessories - Covers:
- end 8221
- connecting 8222
- bending 8223
- branching 8224
- inner corner 8225
- outer corner 8226
- grommet 8227
