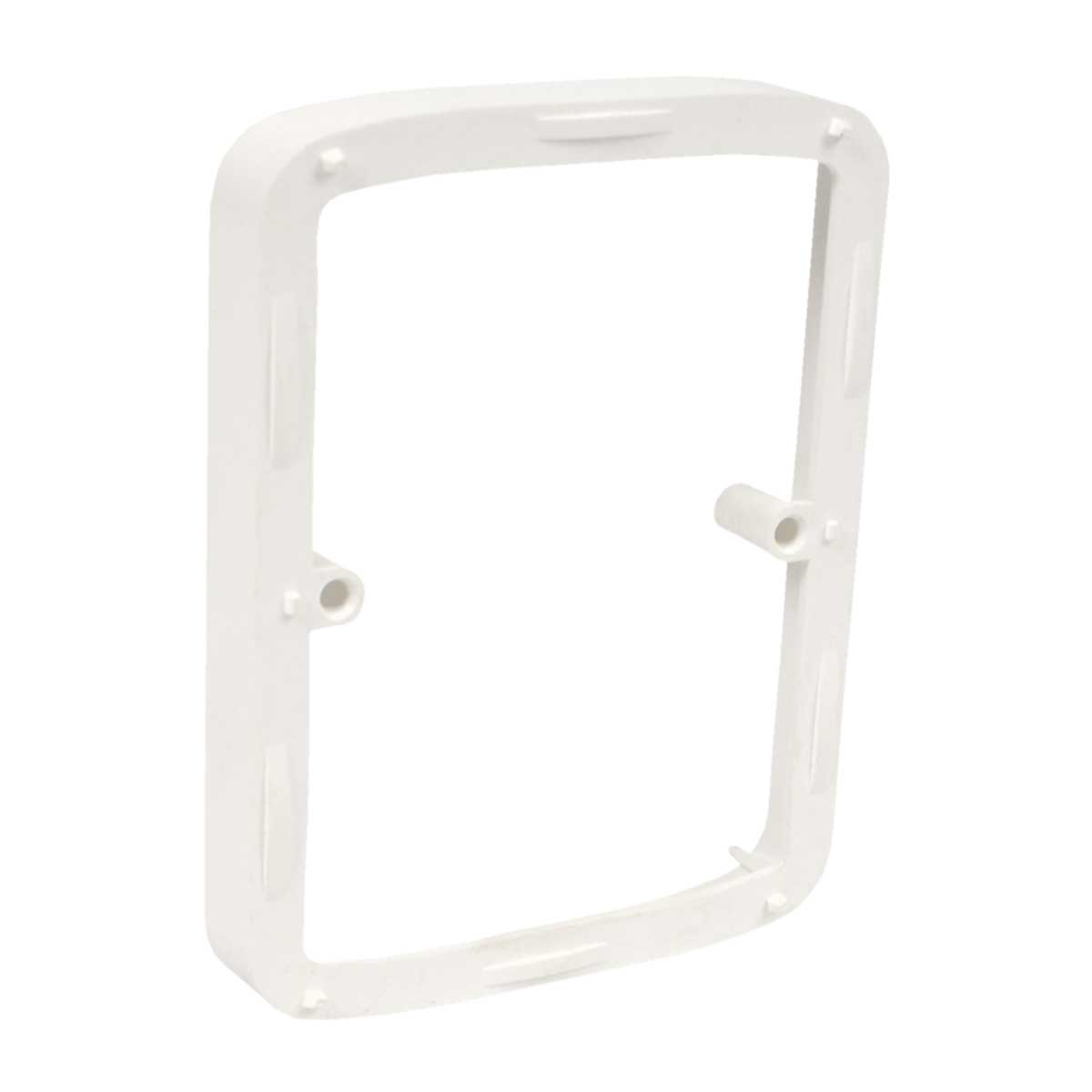

illustrative picture
To download 3D models, please login or create an account and request access.
NR2ZT_EN
| EAN code | 8595057615779 |
| Customs code | 39259080 |
| წონა | 0,0182 kg/ც |
| Material | PVC |
| Leadless material | yes |
| Self-extinguishing | 30 s |
| Temperature resistance | -5 - +60 °C |
| Flaming loop test | 850 °C |

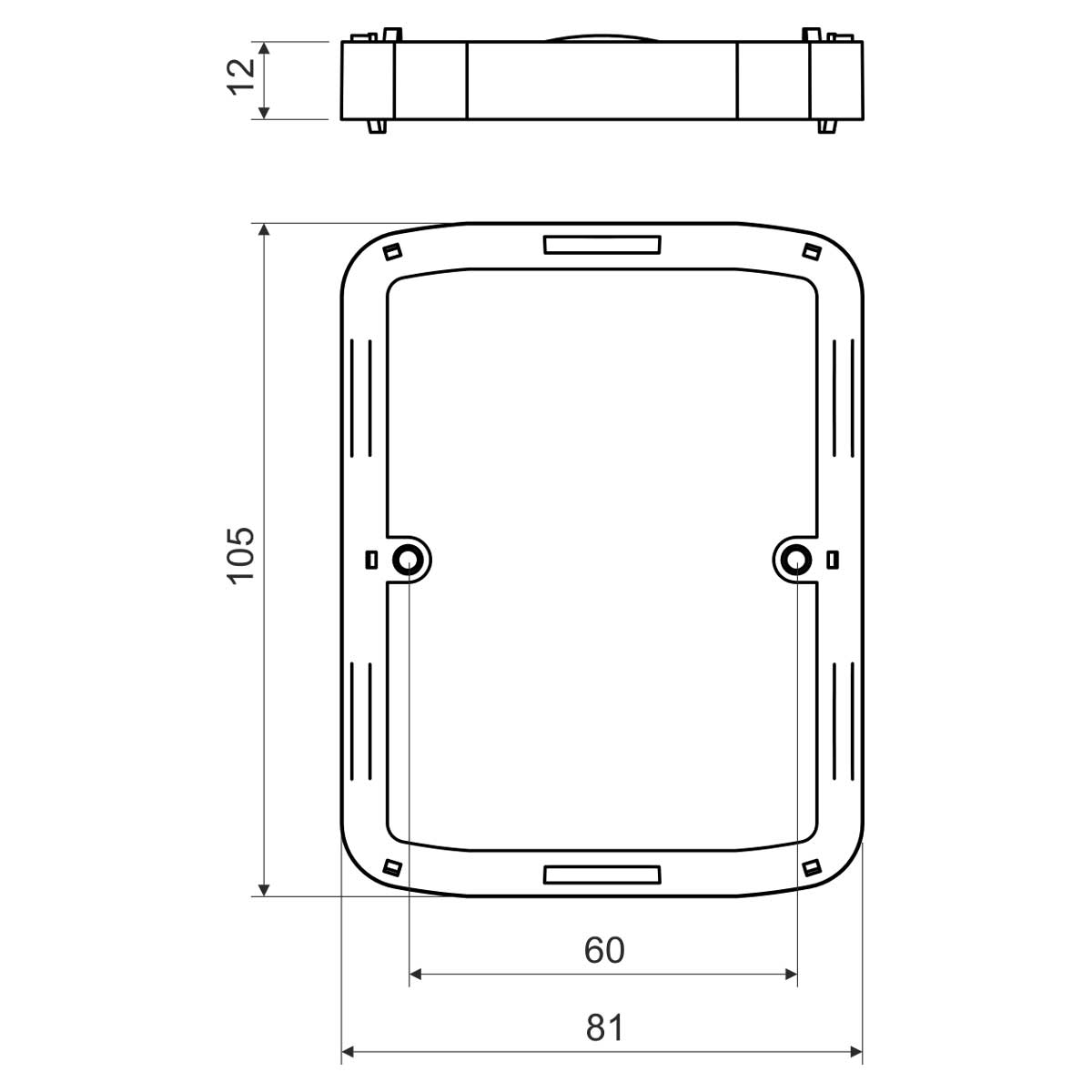

| Width | 81 mm |
| Height | 105 mm |
| Thickness | 12 mm |
| Fire reaction class of underlying material | A1 - F |
| Allows to install double-socket | yes |
| Package description | packed in shrink foil |
For trunking boxes LK 80X28 2ZT under the Tango double-socket.
