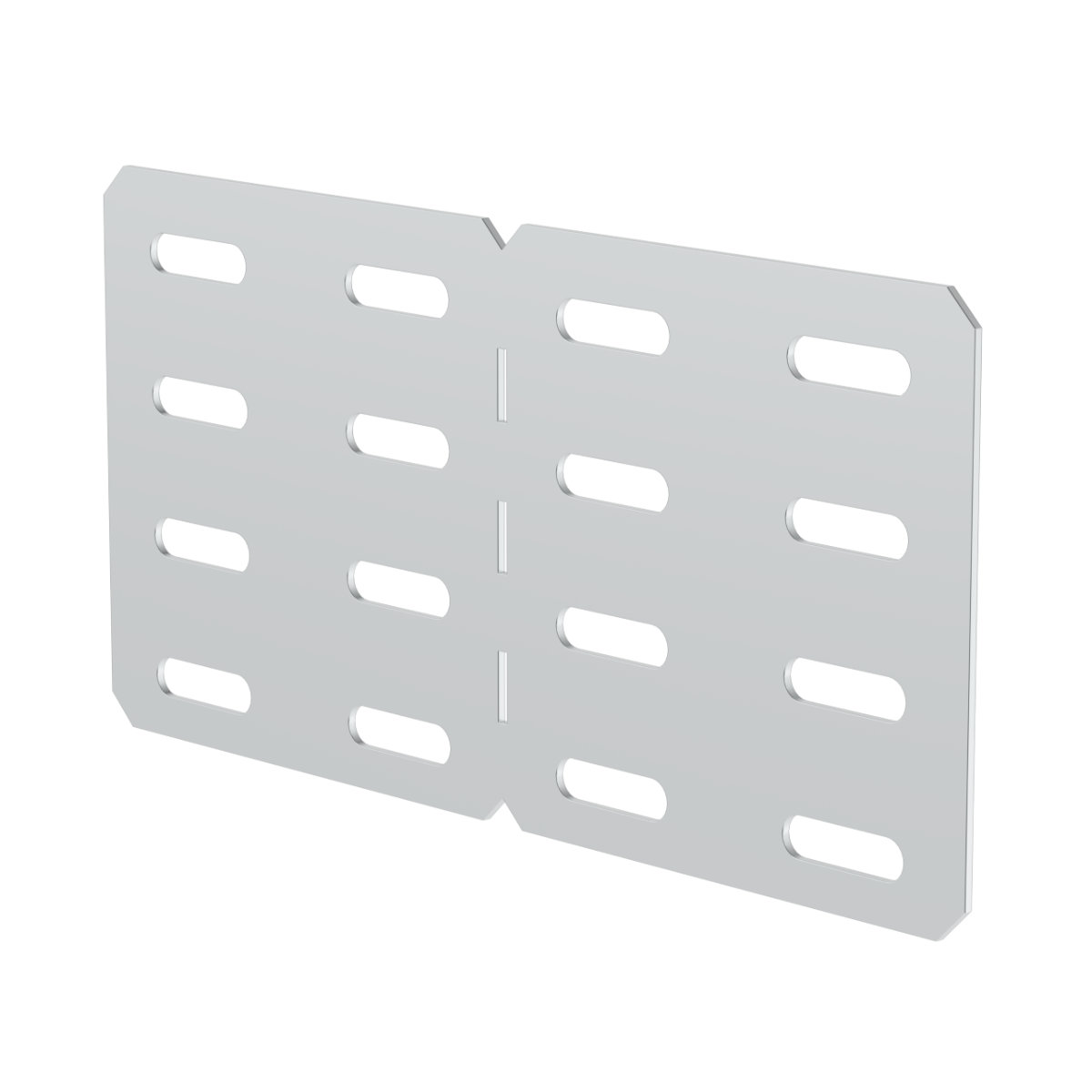

illustrative picture
SSU_EN
| EAN code | 8595568936714 |
| Customs code | 73269098 |
| Surface finish | Pre-Galvanized |
| Temperature resistance | -50 - 150 °C |
| Standards | ČSN EN 61537 |
| Thickness of metal sheet | 1,5 mm |
| Quantity of screws for connecting | 8 |
| Dimension H | 100 mm |
| For height of cable tray | 110 mm |
Angle couplings are used to create any angle, mainly for connecting in places of a slight bend in the route or for creating arcs of large radii or bypassing columns and pillars. The connection is performed using the bolts NSM 6X10. These items can also be ordered in a varnished version.
