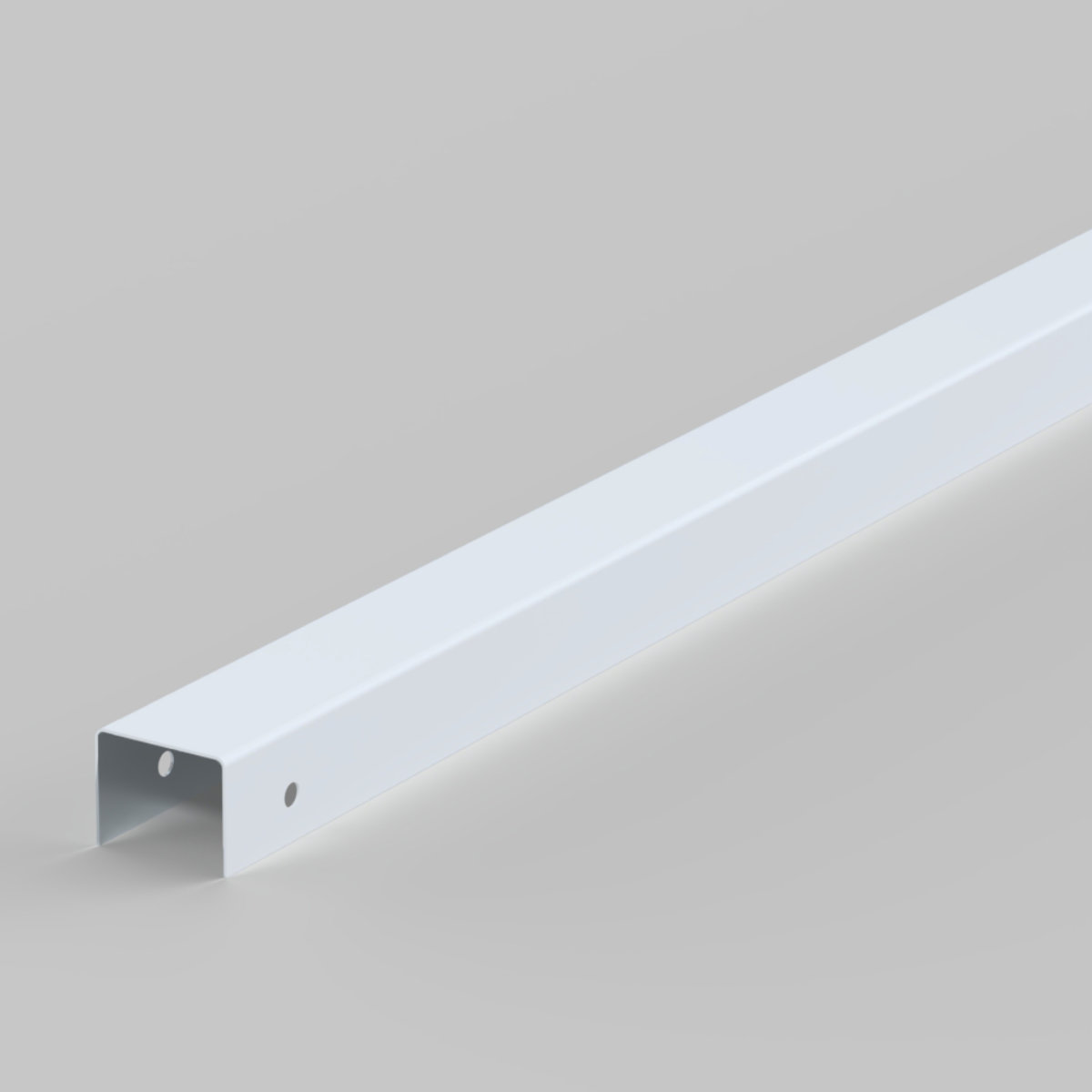

illustrative picture
| EAN code | 8595568943590 |
| Customs code | 73269060 |
| წონა | 0,3500 kg/ც |
| Colour | white RAL 9003 |
| Surface finish | Epoxy painting, over the perimeter |
| Temperature resistance | -50 - +150 °C |
| Mechanical protection | IK07 |
| Width | 25 mm |
| Height | 20 mm |
| Length | 1250 mm |
| Funcionality in fire | P30-R1 E30, PS30 |
| Fire reaction class of underlying material | A1 – F |
| Standards | ČSN EN IEC 61084-1 |
| Fire resistance standards | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Thickness of metal sheet | 0,55 mm |
Use the cover as mechanical protection for cables. Electrical continuity between individual covers must be ensured by installing a connecting cable PLSK_XX.
