EAN code8595057618695
Customs code73063041
წონა1,74 kg/m
Colourblack
Materialsteel
Surface finish
Varnished: Galvanized steel Sendzimir powder coated, color RAL 9005 black, medium corrosion resistance - Group 2
Temperature resistance-60 - 250 °C
Mechanical resistance1250 N/5cm
Mechanical protectionIK10
Length3 m
Outside diameter47 mm
Inner diameter (min.)44 mm
Funcionality in fireP90-R, E90, PS90
Thread typeP36
Sorting code44561
StandardsČSN EN 61386-1 ed.2
Fire resistance standardsČSN 73 0895, DIN 4102-12, STN 92 0205
Max. load for fire resistance10 kg

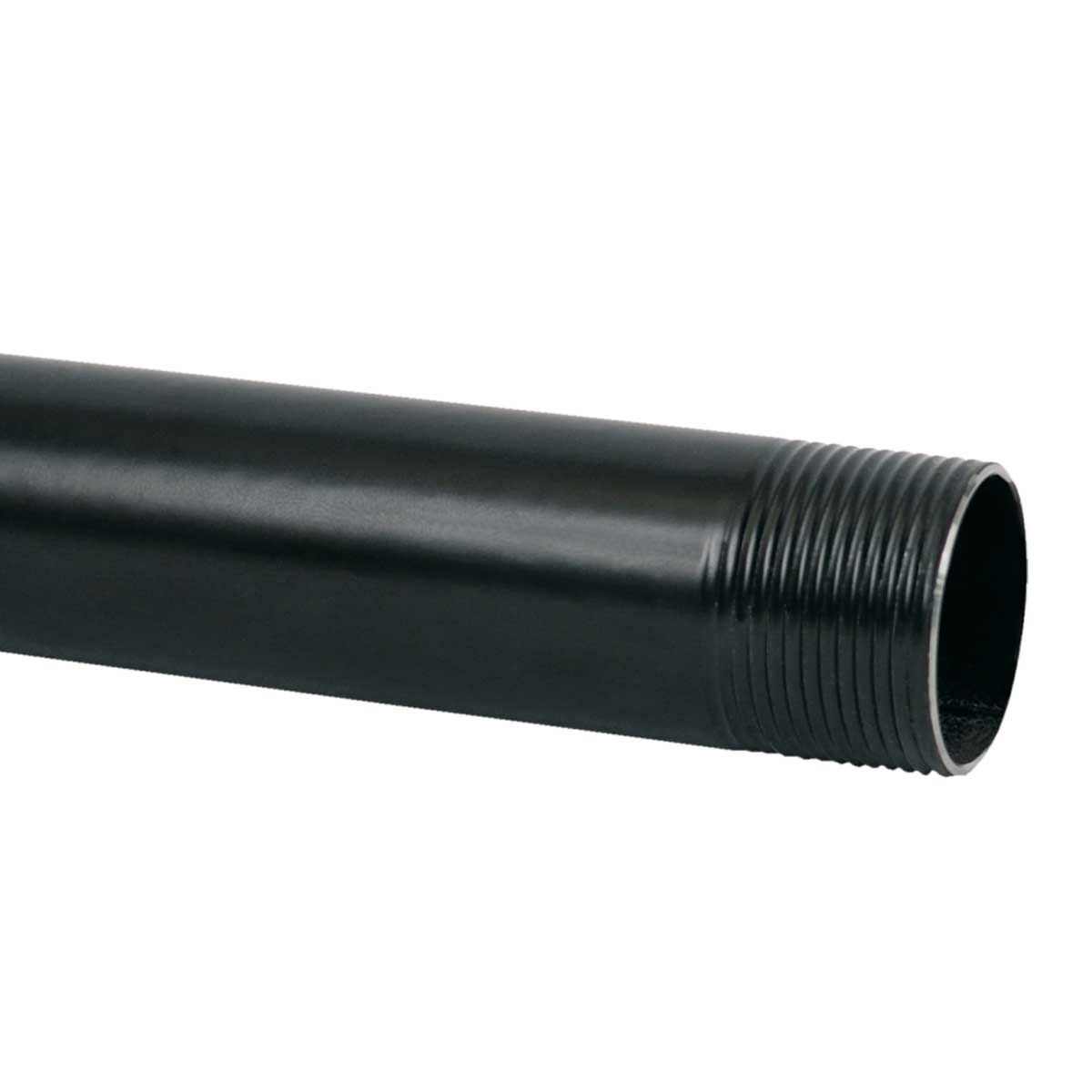

The pipes are suitable for mechanical protection of conductors and cables. Threaded conduits are supplied with one coupler. While using pipes along with bushing 4813/P - 4842/P and 4913 - 4942 is scope of application only -5 - +60 °C.

Note for system with maintained functionality in fire:
max. 1 piece of cable in the pipe
You find more information in the catalogue Systems with maintained functionality in fire.
