EAN code8595057604193
Customs code85381000
წონა0,61 kg/pcs
MaterialAl
Temperature resistance-25 - 70 °C
Mechanical protectionIK10
Width96 mm
Height96 mm
Depth64 mm
Diameter of the mounting hole6 mm
Fire reaction class of underlying materialA1 - D
Extending reaction to fire of underlying material
Combined with a 5 mm thermal insulating, non-flammable pad, assembly on building materials can be carried out without restriction of the reaction to fire class A1
Protection typesIP 54
Package descriptionthe glands for threaded pipes P16

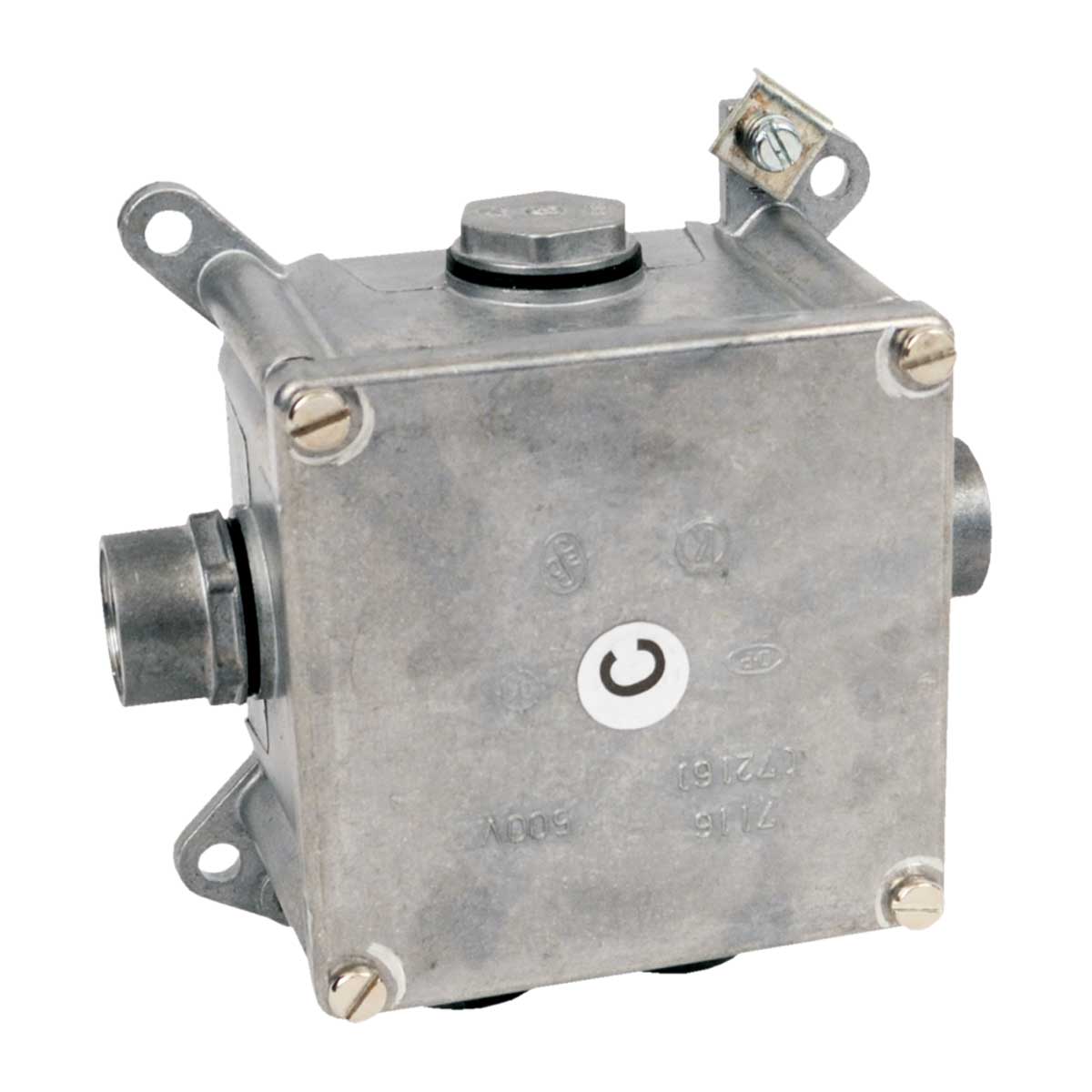

Boxes for piping with steel threaded or metal flexible pipes. Three glands and one plug evenly distributed on the sides of the box. Terminal plate is not included in the box.7216 C: without protective terminal for installation in TNC networks.
