EAN code | 8595057619920 |
Customs code | 39259020 |
წონა | 0,1150 kg/m |
Colour | white |
Material | PVC |
Leadless material | yes |
Self-extinguishing | 30 s |
Temperature resistance | -5 - 60 °C |
Flaming loop test | 850 °C |
Mechanical protection | IK06 |
Impact resistance | 0,5 J |
Antibacterial | yes |

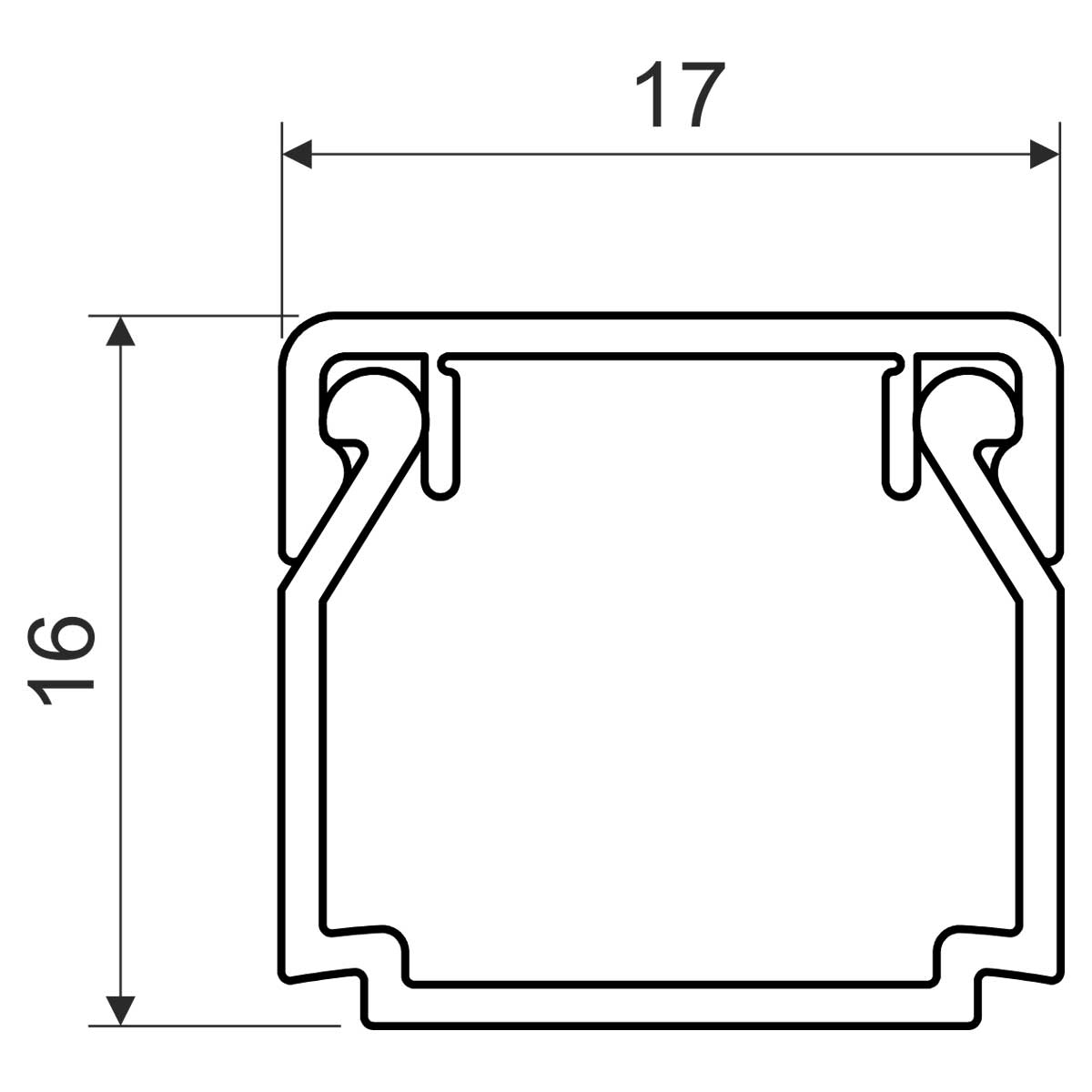

Width | 17 mm |
Height | 16 mm |
Length | 2 m |
Inside area | 190 mm2 |
Allowance The trunkings are available in lengths with a tolerance of ± 0.5% at 20 ° C. | |
Use they are resistant to aggressive and chemical environments. They do not resist UV radiation, they are not suitable for outdoor use. | |
Area with explosion danger Electro-installation trunking (insertive, rectangular, halogen-free) and parapet canals with accesories can be installed in zones with explosion hazard of flammable gases (zone 2) and with the risk of explosion of flammable dusts (zone 22), installation must comply with EN 60079-14. | |
Fire reaction class of underlying material | A1 - F |
Protection types | IP 40 |
Standards | ČSN EN 50 085-1 |
Package description | package - cardboard |
With protective foil | yes |

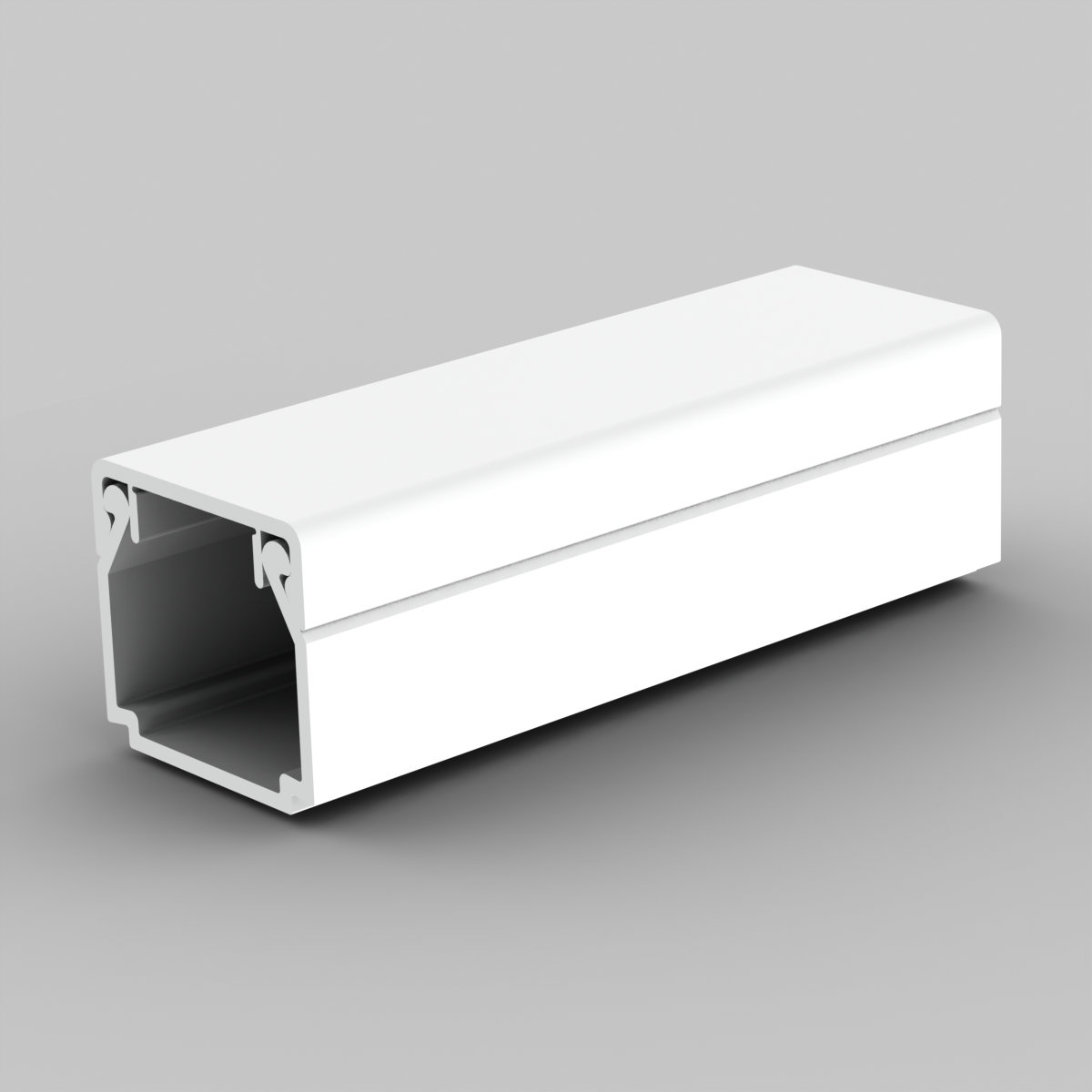

Standard shape. Designed for wall or ceiling mounting. Double lock on lid increasing the trunking’s rigidity and ensuring stronger cover fixation.
