Steel threaded pipes painted in black on both sides (EN)

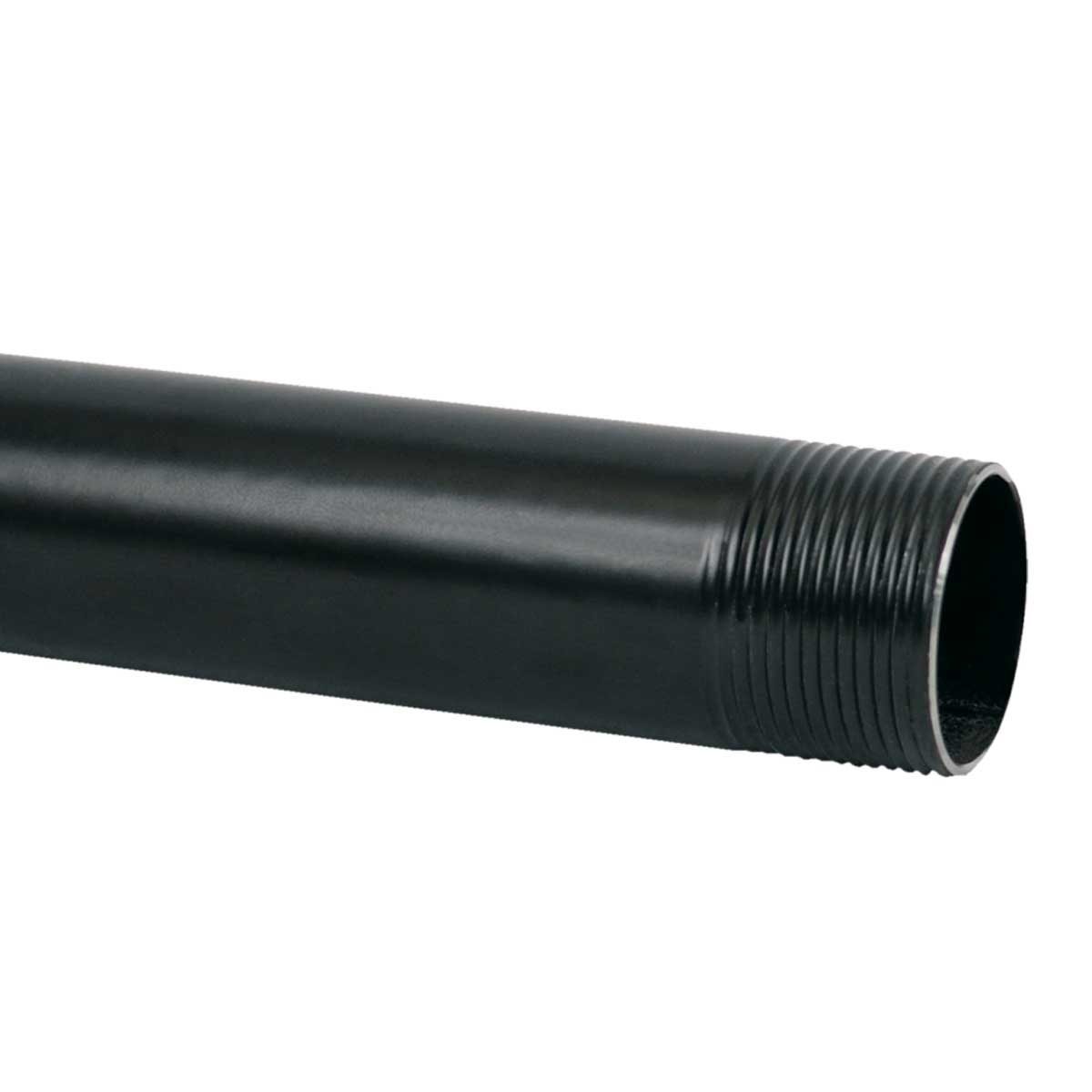

illustrative picture

6016E ECZ - ocelová trubka závitová oboustranně lakovaná (EN)

EAN code	8595057634152
Customs code	73063041
წონა	0,5300 kg/m
Colour	black
Material	steel
Surface finish Varnished ECZ: smooth steel material painted on both sides black, medium corrosion resistance - Group 2
Temperature resistance	-45 - +250 °C
Mechanical resistance	4000 N/5cm
Mechanical protection	IK10
Length	3 m
Outside diameter	16 mm
Inner diameter (min.)	12,2 mm
Funcionality in fire	P90-R, E90, PS90
Thread type	M16 x 1,5
Sorting code	55561
Standards	ČSN EN 61386-1 ed.2
Fire resistance standards	ČSN 73 0895, DIN 4102-12, STN 92 0205

The pipes are suitable for mechanical protection of conductors and cables. Threaded conduits are supplied with one coupler. While using pipes along with bushing 4813/P - 4842/P and 4913 - 4942 is scope of application only -5 - +60 °C.
