LE80_EN
| EAN code | 8595057620940 |
| Customs code | 39259020 |
| წონა | 0,4600 kg/m |
| Colour | white |
| Material | PVC |
| Leadless material | yes |
| Self-extinguishing | 30 s |
| Temperature resistance | -5 - 60 °C |
| Flaming loop test | 850 °C |
| Impact resistance | 1 J |
| ანტიბაქტერიული | yes |

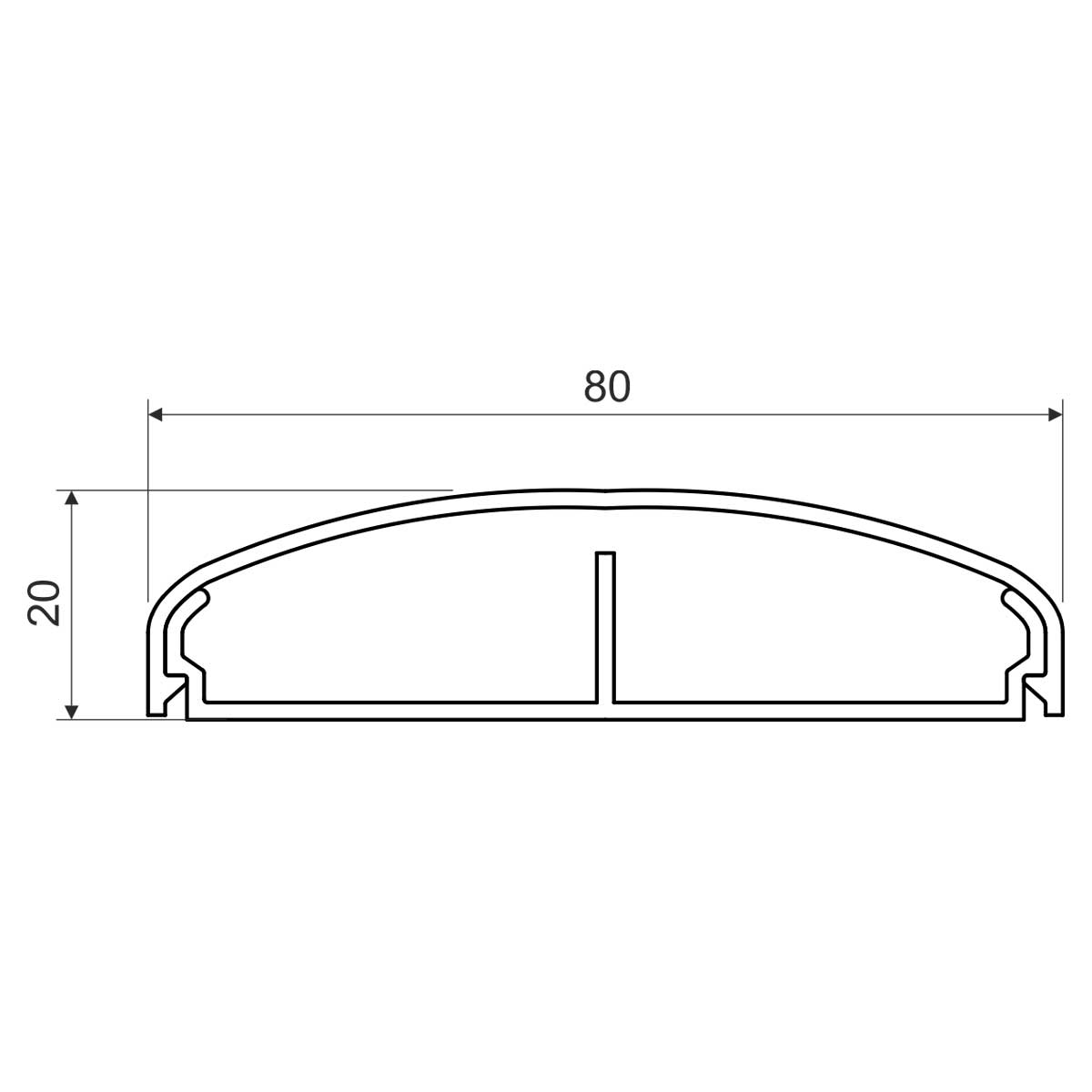

| Width | 80 mm |
| Height | 20 mm |
| Length | 2 m |
| Inside area | 420, 420 |
| Allowance The trunkings are available in lengths with a tolerance of ± 0.5% at 20 ° C. | |
| Area with explosion danger Electro-installation trunking (insertive, rectangular, halogen-free) and parapet canals with accesories can be installed in zones with explosion hazard of flammable gases (zone 2) and with the risk of explosion of flammable dusts (zone 22), installation must comply with EN 60079-14. | |
| Fire reaction class of underlying material | A1 - F |
| Protection types | IP 40 |
| Standards | ČSN EN 50 085-1 |
| Package description | package - cardboard |
Elegant shape. Designed for wall mounting. Not to be mounted on the floor or to be loaded by being stepped on, etc. Possibility to insert instrument carrier.
