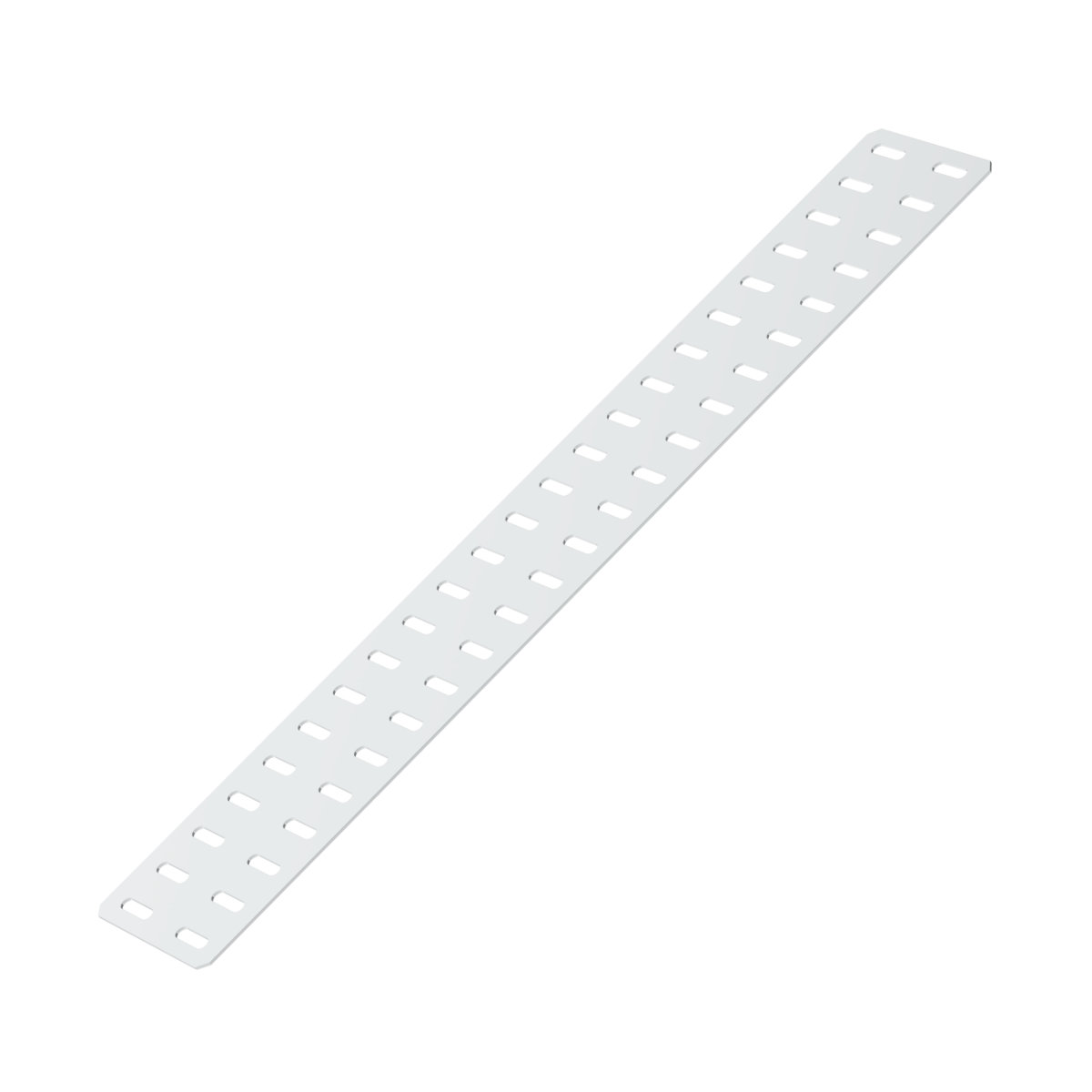

illustrative picture
To download 3D models, please login or create an account and request access.
DV_EN
| EAN code | 8595057638853 |
| Customs code | 73269098 |
| წონა | 0,6030 kg/ც |
| Surface finish | Pre-Galvanized |
| Temperature resistance | -50 - +150 °C |
| Standards | ČSN EN 61537 |
| Thickness of metal sheet | 1,5 mm |
| Quantity of screws for connecting | 8 |
| Dimension A | 575 mm |
| For width of cable tray | 600 mm |
Is used for reinforcing the tray connections without integrated coupling. It is fastened by the bolts NSM 6X10 to the tray bottom.
