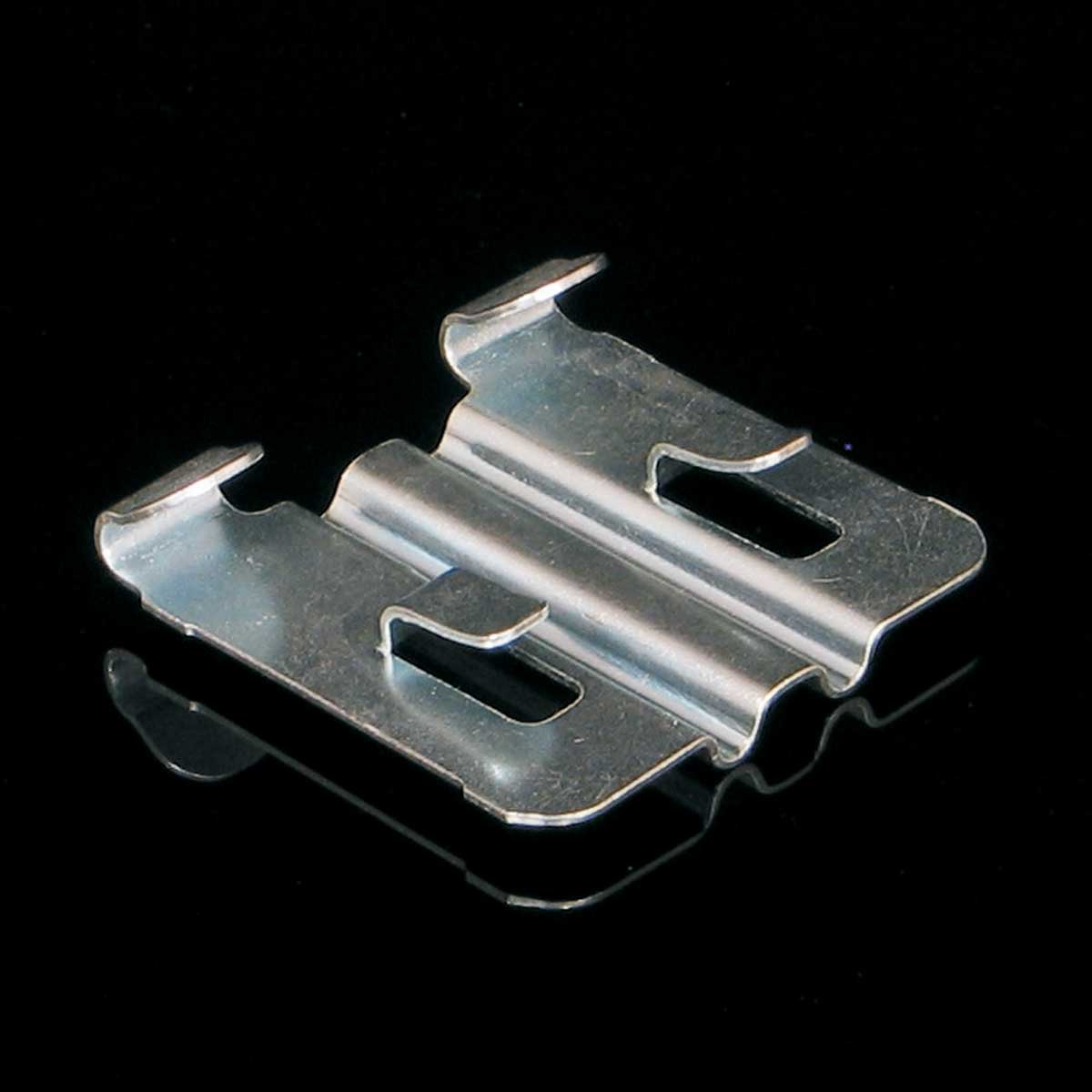

illustrative picture
To download 3D models, please login or create an account and request access.
DZRS_EN
| EAN code | 8595568902603 |
| Customs code | 73269098 |
| წონა | 0,03 kg/pcs |
| Surface finish | Hot Dip Galvanized |
| Funcionality in fire | P90-R, E90, PS90 |
| Standards | ČSN EN 61537 |
| Fire resistance standards | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| For height of cable tray | 60 - 110 mm |

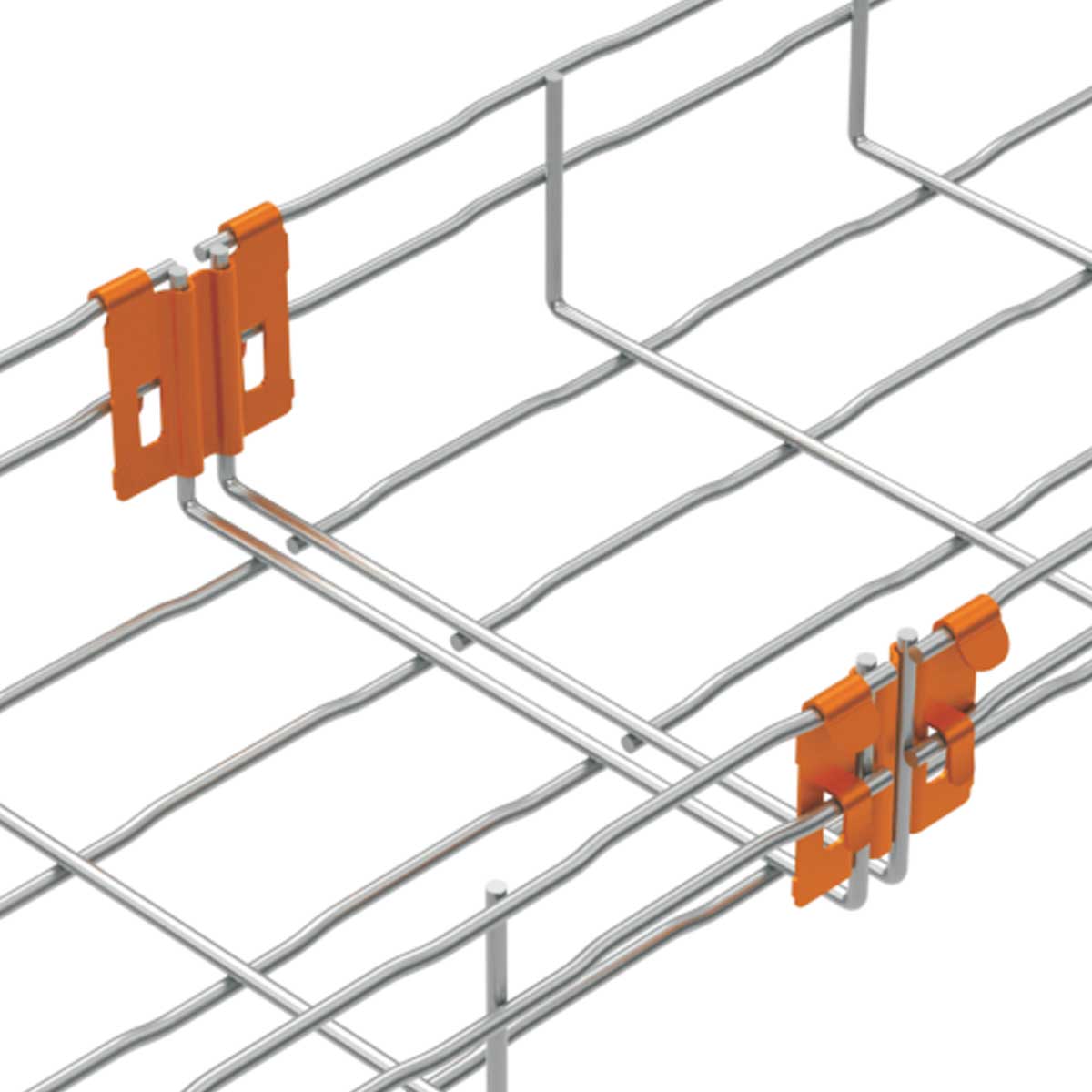

The quick coupling enables the connecting of the trays with a side height of 60 and 110 mm without using bolts. For the formation of fix connection there is necessary to decline the fixative studs by the anchor.
ამჟამად არ არის პროდუქცია.
