EAN code8595057661691
Customs code73089059
წონა14,35 kg/pcs
Surface finishHot Dip Galvanized
Temperature resistance-50 - 150 °C
StandardsČSN EN 61537
Thickness of metal sheet1,2 - 1,5 mm
Quantity of screws for connecting64

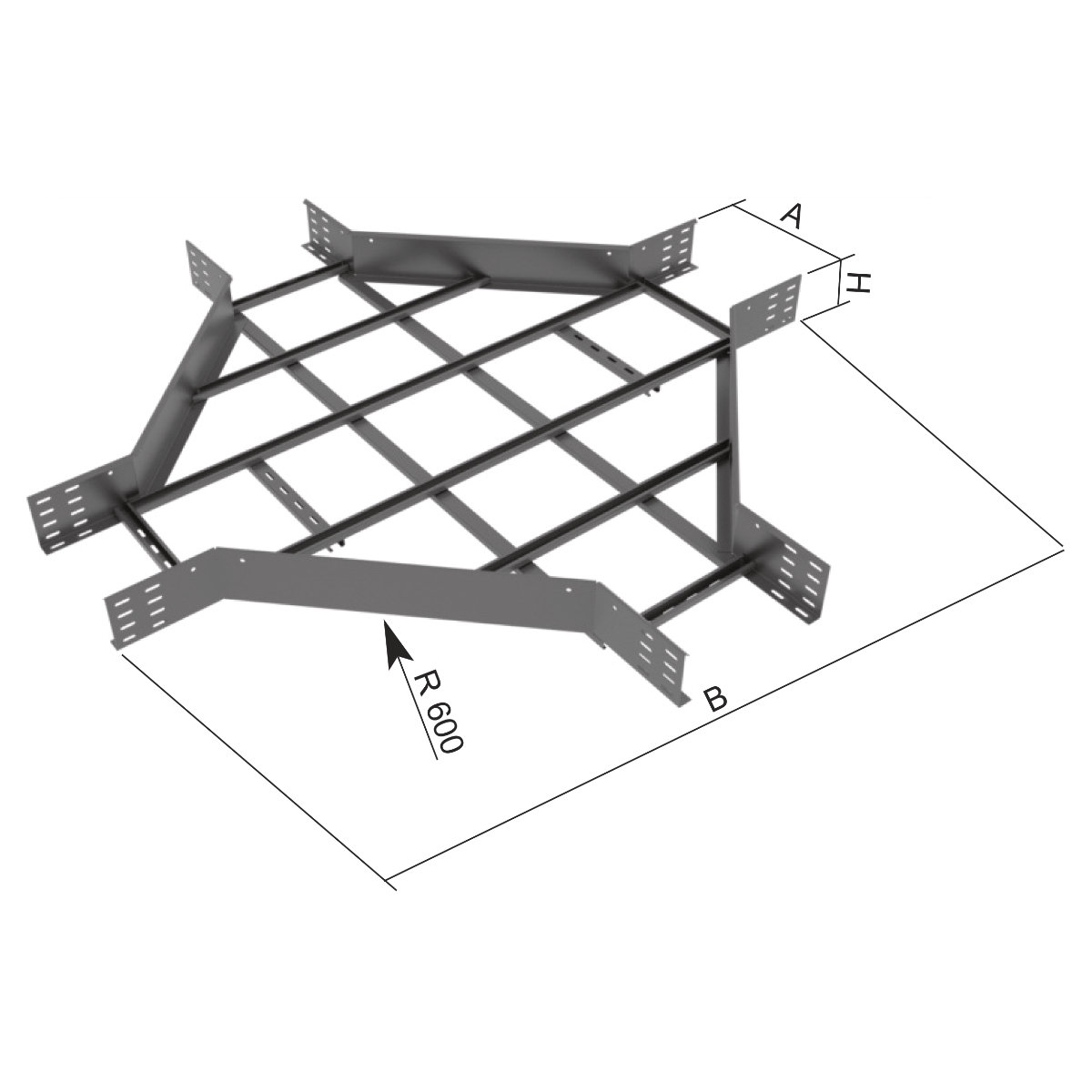

Dimension A400 mm
Dimension B1600 mm
Dimension H110 mm

The connection of the cross-over with the ladder is performed by using the 8 pcs couplings S110X200 and 64 pcs bolts NSM 6X10.
