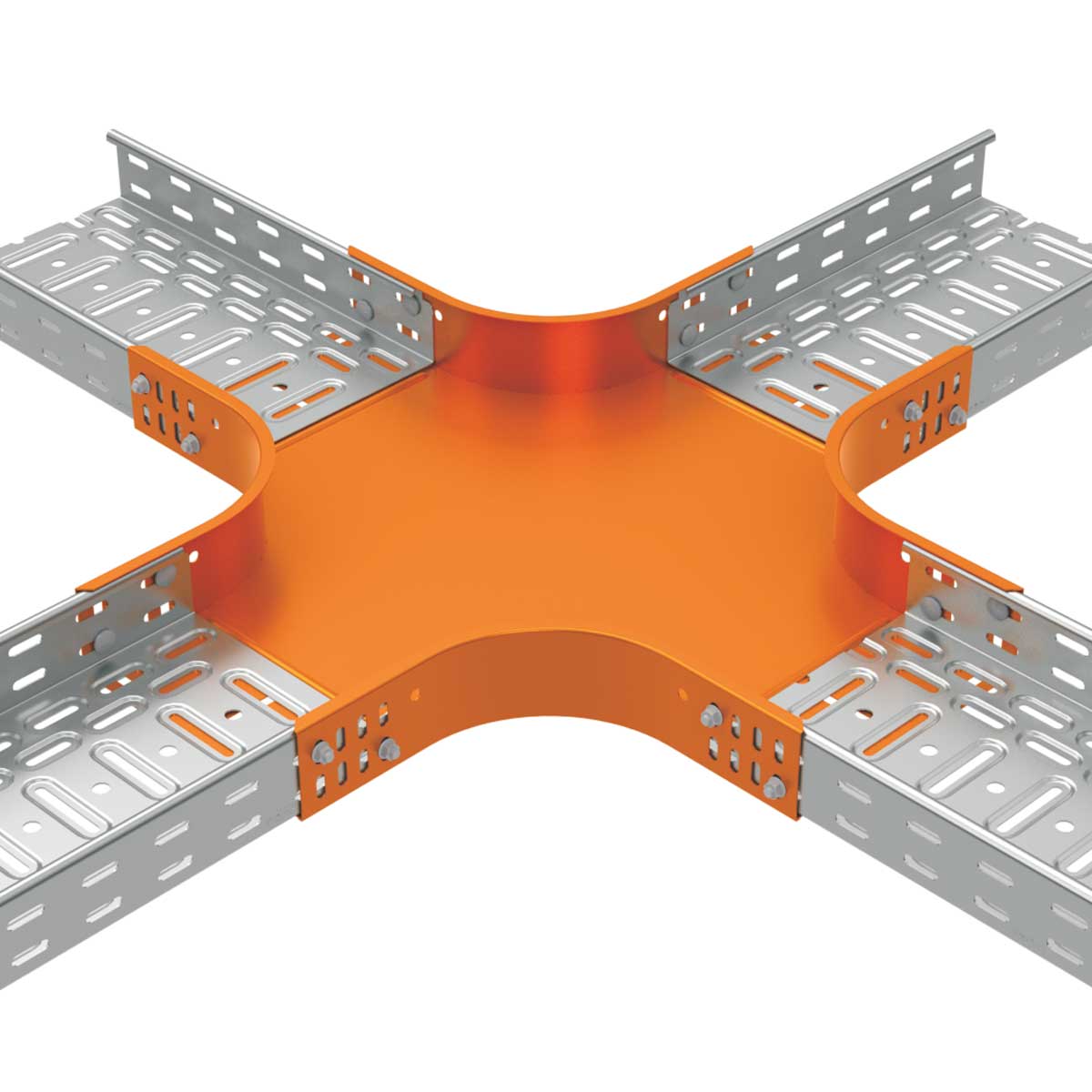

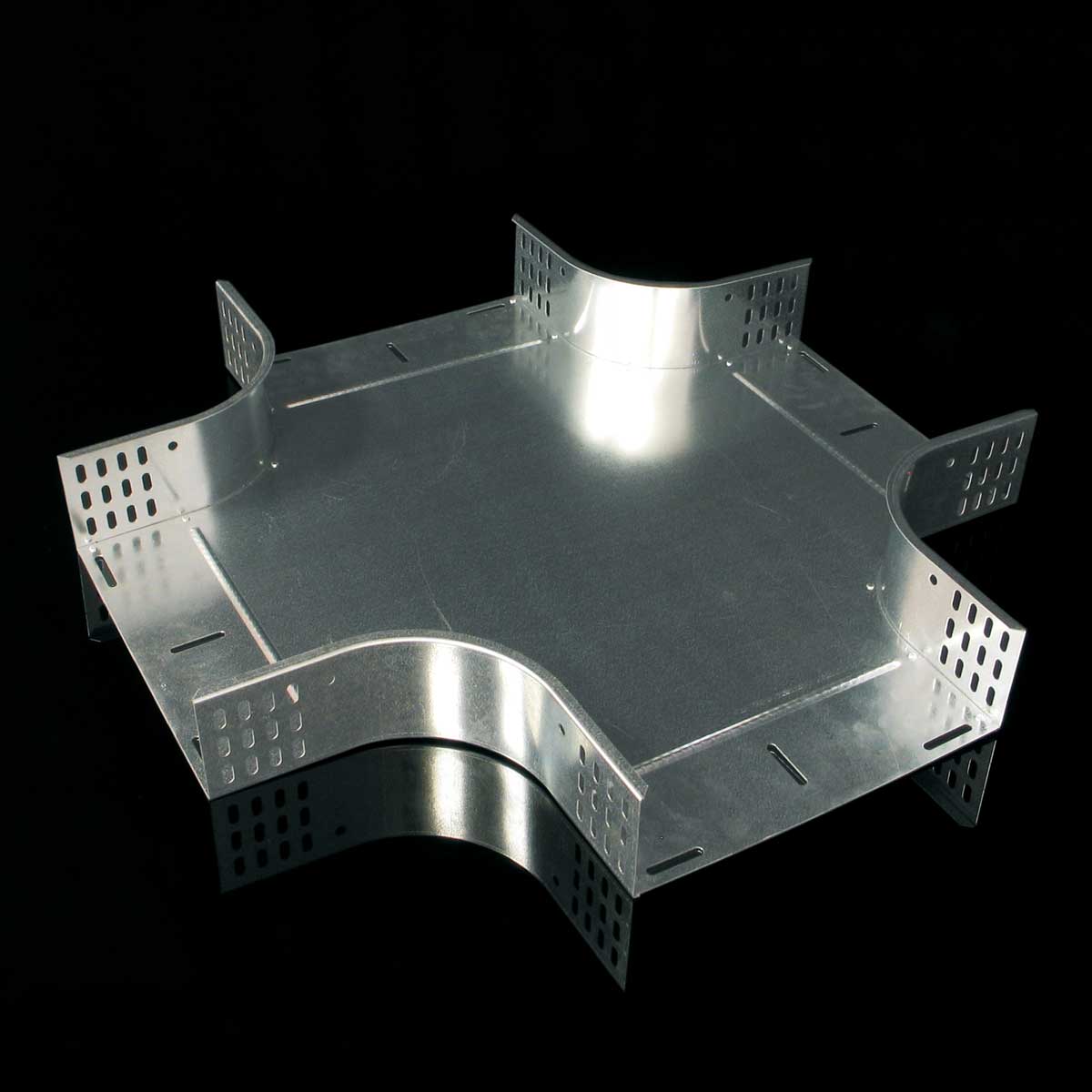

illustrative picture
To download 3D models, please login or create an account and request access.
KR_EN
| EAN code | 8595057637603 |
| Customs code | 73089059 |
| წონა | 1,2160 kg/ც |
| Surface finish | Pre-Galvanized |
| Temperature resistance | -50 - +150 °C |
| Standards | ČSN EN 61537 |
| Thickness of metal sheet | 0,8 mm |
| Quantity of screws for connecting | 16 |

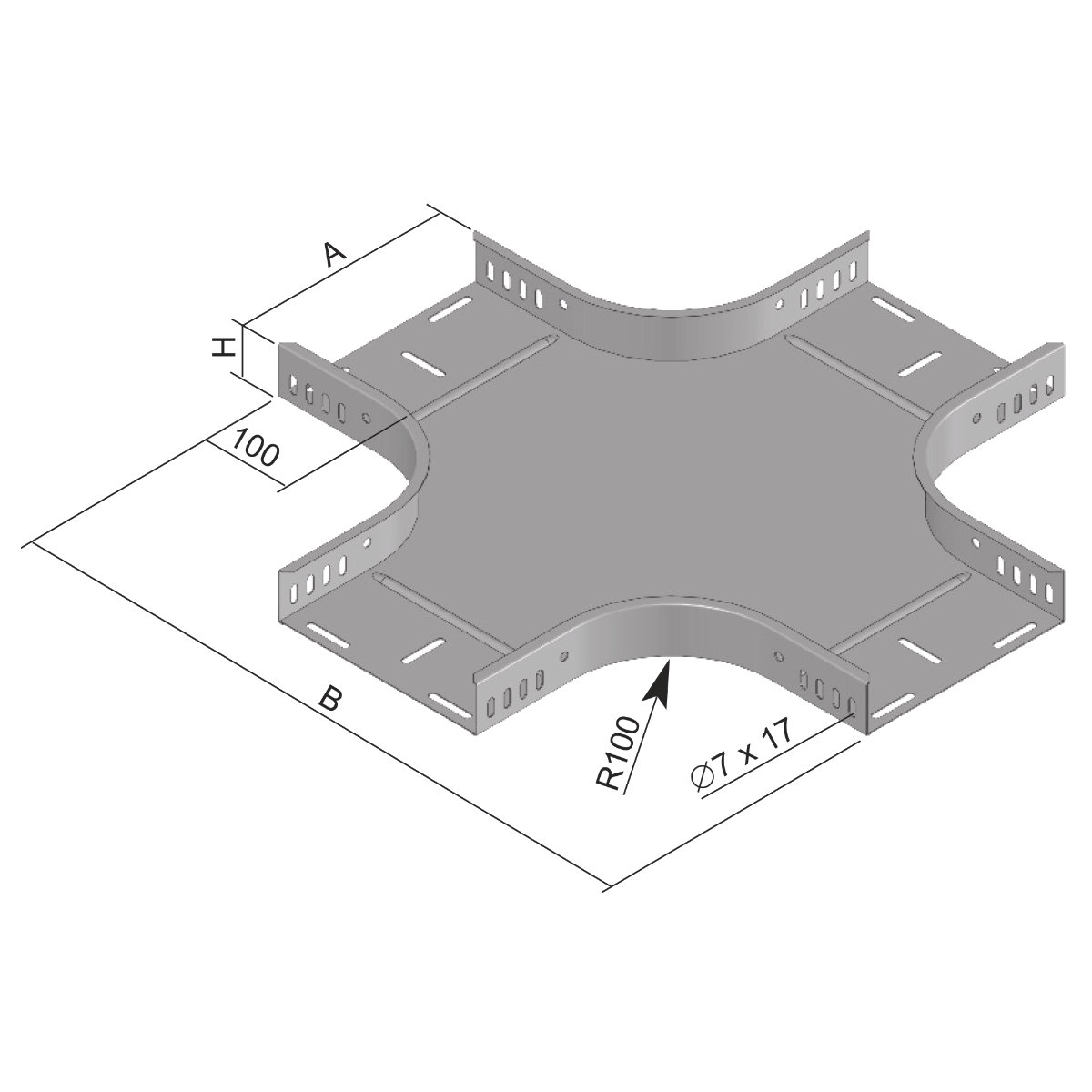

| Dimension A | 78 mm |
| Dimension B | 478 mm |
| Dimension H | 40 mm |
| For width of cable tray | 75 mm |
| For height of cable tray | 35 mm |
To fix the connection use the bolt NSM 6X10. Use horizontal branch OH or reduction piece SU to make unequal cross.
