NIXK_EN
| EAN code | 8595057669994 |
| Customs code | 73269098 |
| წონა | 0,04 kg/pcs |
| Surface finish | Stainless steel AISI 304 |
| Temperature resistance | -50 - 150 °C |
| Standards | ČSN EN 61537 |
| Thickness of metal sheet | 0,6 mm |
| Quantity of screws for connecting | 2 |
| Dimension A | 123 mm |
| Dimension H | 50 mm |
| For width of cable tray | 125 mm |
| For height of cable tray | 50 mm |

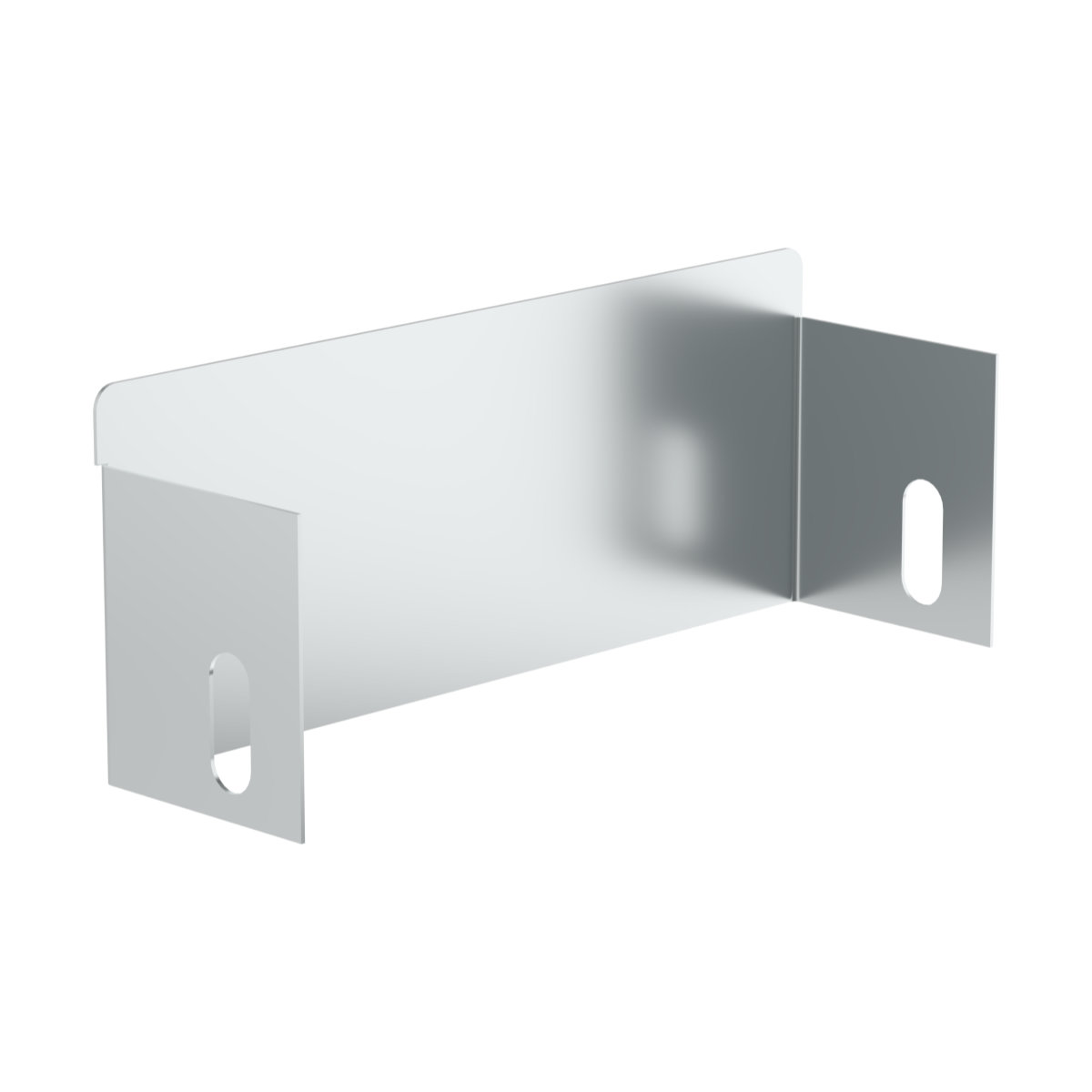

The joining is performed by using the bolts NIXSM 6X10. The end-piece serves for the ending off a route.
