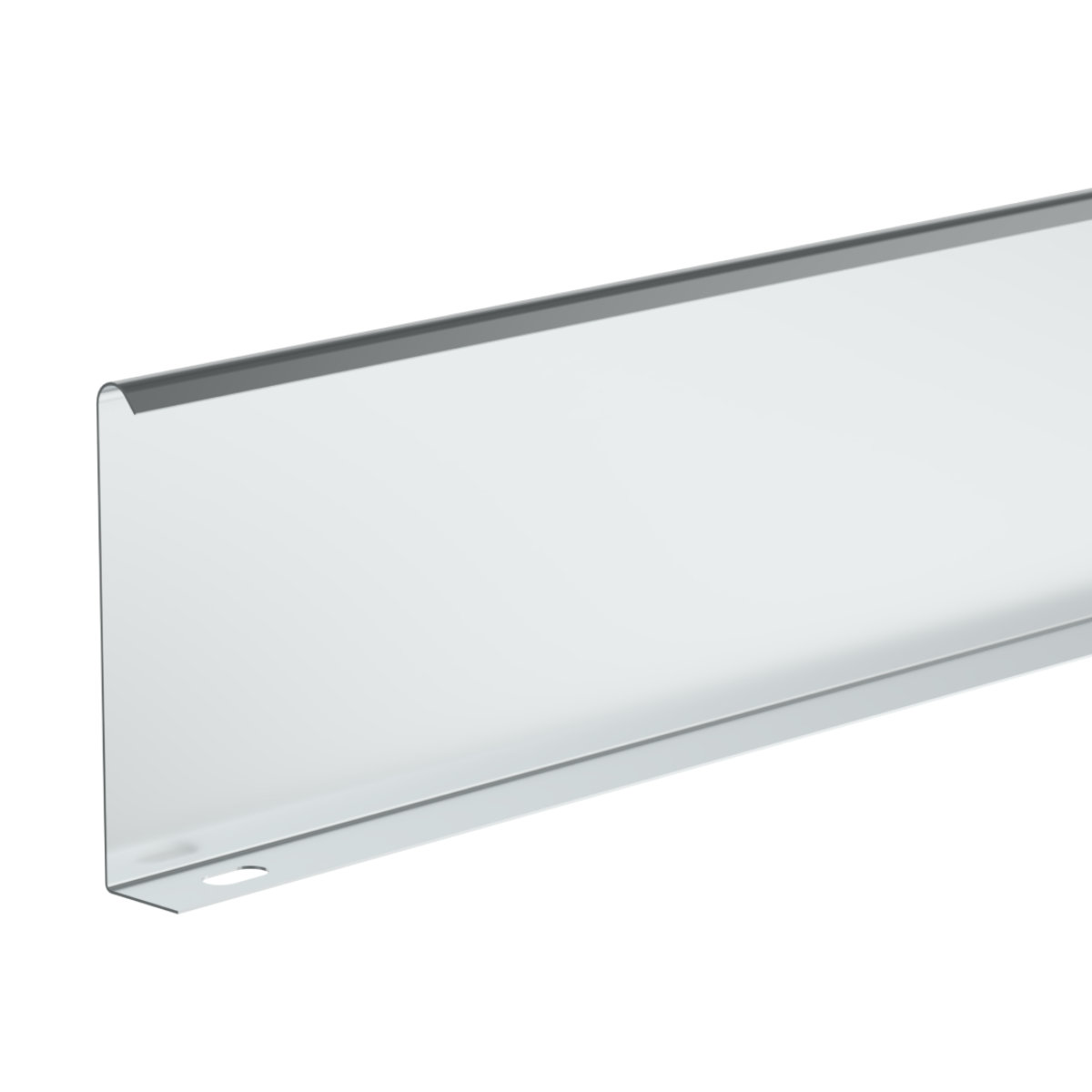

illustrative picture
To download 3D models, please login or create an account and request access.
| EAN code | 8595057671959 |
| Customs code | 72224050 |
| წონა | 0,7500 kg/m |
| Surface finish | Stainless steel AISI 304 |
| Temperature resistance | -50 - +150 °C |
| Length | 2000 mm |
| Funcionality in fire | P90-R, E90, PS90 |
| Standards | ČSN EN 61537 |
| Fire resistance standards | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Thickness of metal sheet | 0,6 mm |
| Dimension H | 94 mm |
| For width of cable tray | 125 - 500 mm |
| For height of cable tray | 100 mm |
The fixing of the partition is carried out by bolts NIXSM 6X10.
Note for system with maintained functionality in fire:
You find more information in the catalogue Cable management systems - Fire resistant systems.
NIXPZ_EN
