OH_EN
| EAN code | 8595057637306 |
| Customs code | 73089059 |
| წონა | 1,2290 kg/ც |
| Surface finish | Pre-Galvanized |
| Temperature resistance | -50 - +150 °C |
| Standards | ČSN EN 61537 |
| Thickness of metal sheet | 1 mm |
| Quantity of screws for connecting | 17 |

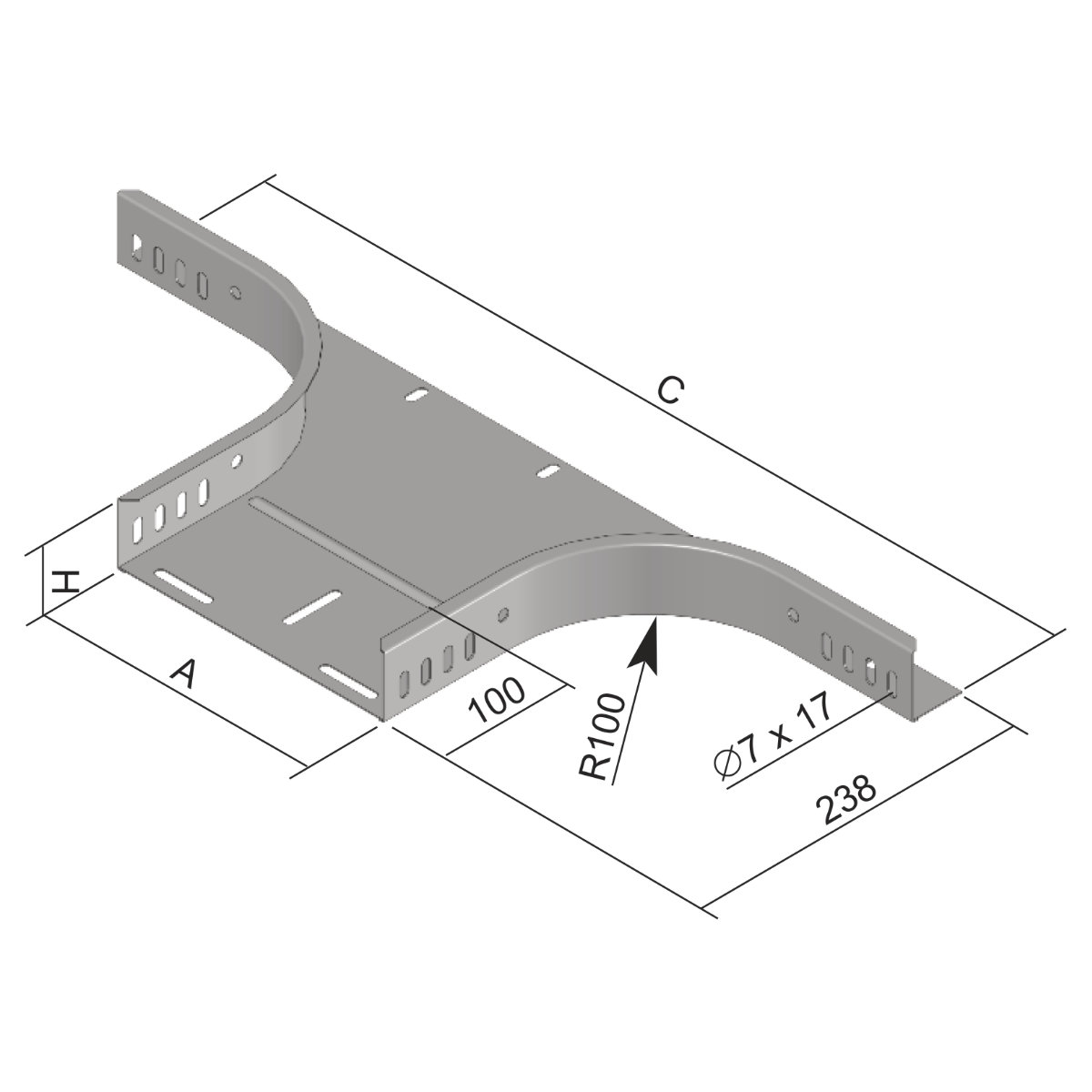

| Dimension A | 203 mm |
| Dimension C | 603 mm |
| Dimension H | 115 mm |
| For width of cable tray | 200 mm |
| For height of cable tray | 110 mm |

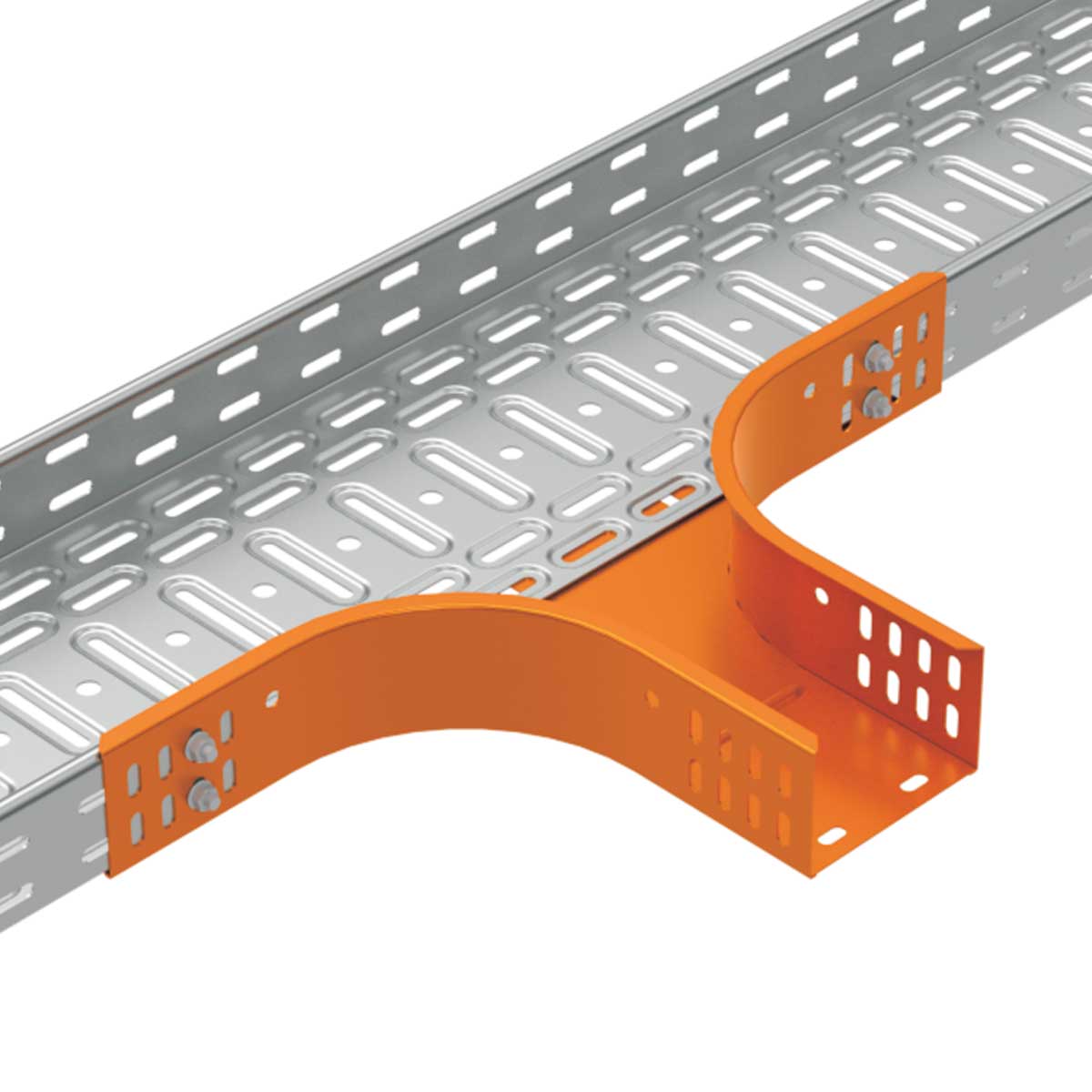

To fix the connection use the bolt NSM 6X10. Horizontal branch is used for additional branching from the line.
