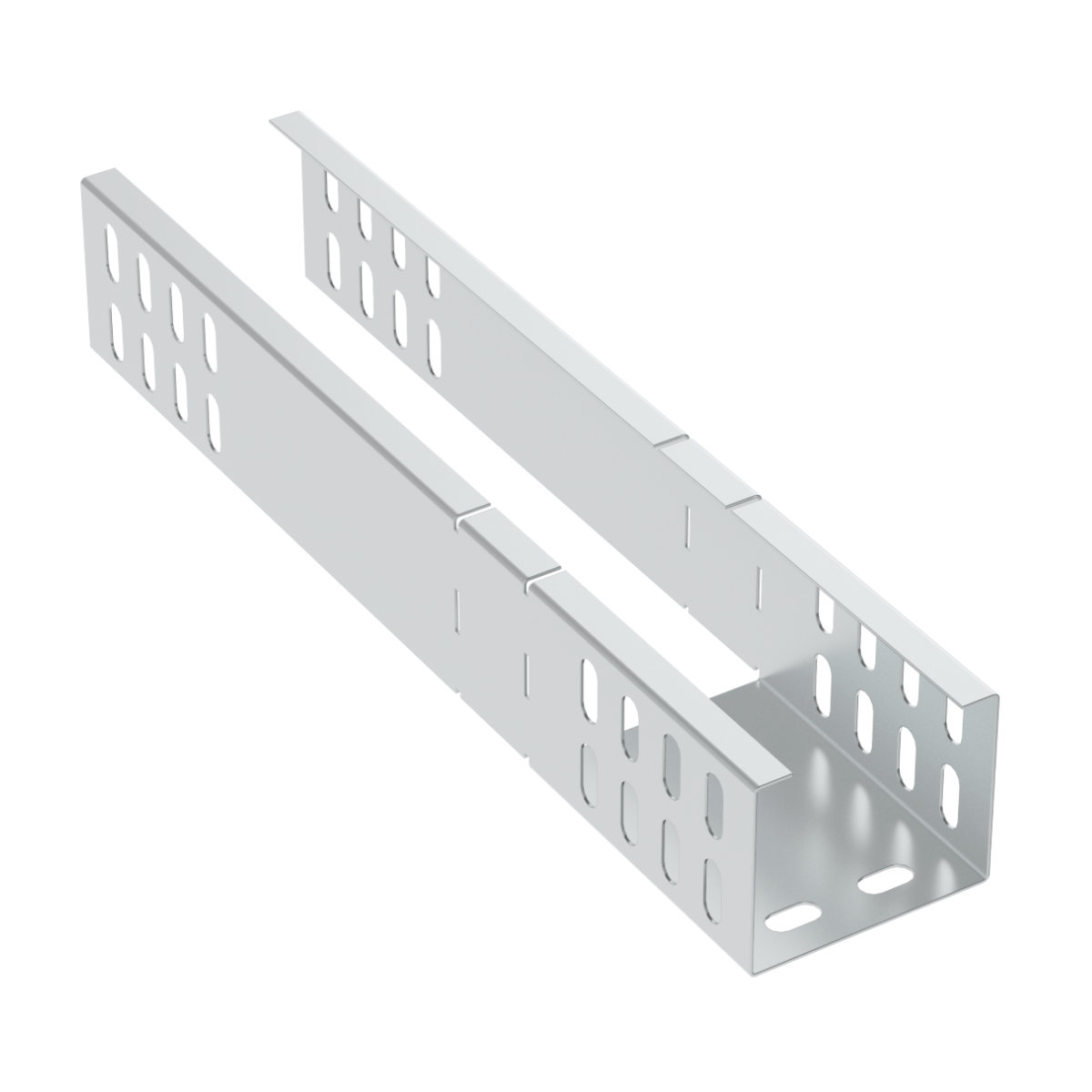

illustrative picture
To download 3D models, please login or create an account and request access.
| EAN code | 8595568917584 |
| Customs code | 73089059 |
| წონა | 0,2390 kg/ც |
| Surface finish | Pre-Galvanized |
| Temperature resistance | -50 - +150 °C |
| Standards | ČSN EN 61537 |
| Thickness of metal sheet | 0,8 mm |
| Dimension A | 300 mm |
| Dimension B | 64 mm |
| Dimension H | 52 mm |
| For width of cable tray | 62 mm |
| For height of cable tray | 50 mm |
This part enables a vertical route to be switched to horizontal. Particularly suitable for the main cable route, e.g. to machines or other equipment. Used together with a downward arc. Protected by industrial model.
