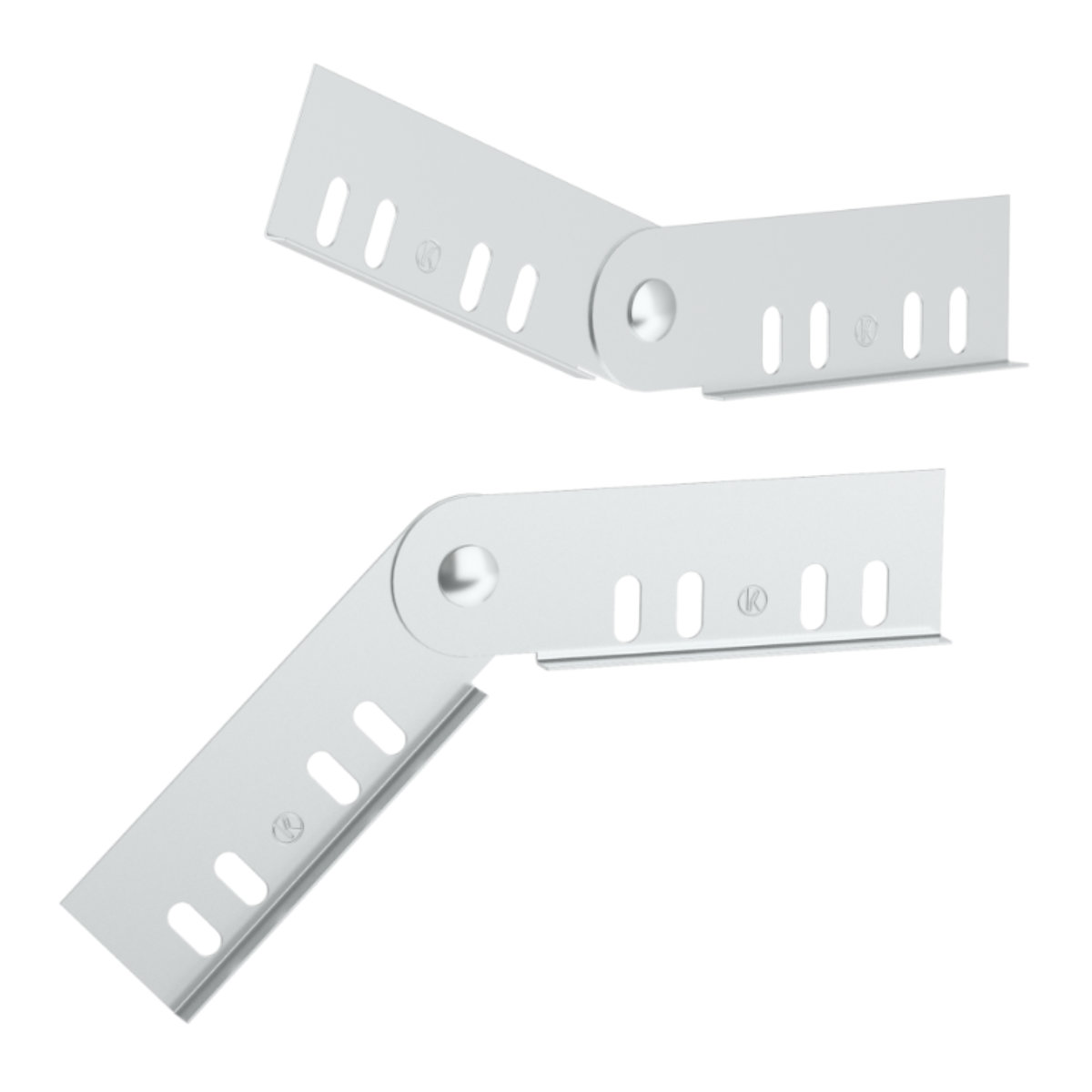

illustrative picture
To download 3D models, please login or create an account and request access.
SK_EN
| EAN code | 8595568926012 |
| Customs code | 73269098 |
| წონა | 0,21 kg/pcs |
| Surface finish | Non electrolytic plating Geomet |
| Temperature resistance | -50 - 150 °C |
| Funcionality in fire | P90-R, E90, PS90 |
| Standards | ČSN EN 61537 |
| Fire resistance standards | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Thickness of metal sheet | 1 mm |
| Quantity of screws for connecting | 4 |
| Dimension H | 43 mm |
| For height of cable tray | 50 mm |
For the connection of the hinged joint to the tray there are used the bolts NSM 6X10. The joint is delivered in 1 piece per packing, 2 pcs are needed to make a bend of the line.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
