illustrative picture
To download 3D models, please login or create an account and request access.
SU_EN
| EAN code | 8595057658615 |
| Customs code | 73089059 |
| წონა | 0,53 kg/pcs |
| Surface finish | Hot Dip Galvanized |
| Temperature resistance | -50 - 150 °C |
| Standards | ČSN EN 61537 |
| Thickness of metal sheet | 1 mm |
| Quantity of screws for connecting | 8 |
| Dimension H | 115 mm |
| For height of cable tray | 110 mm |

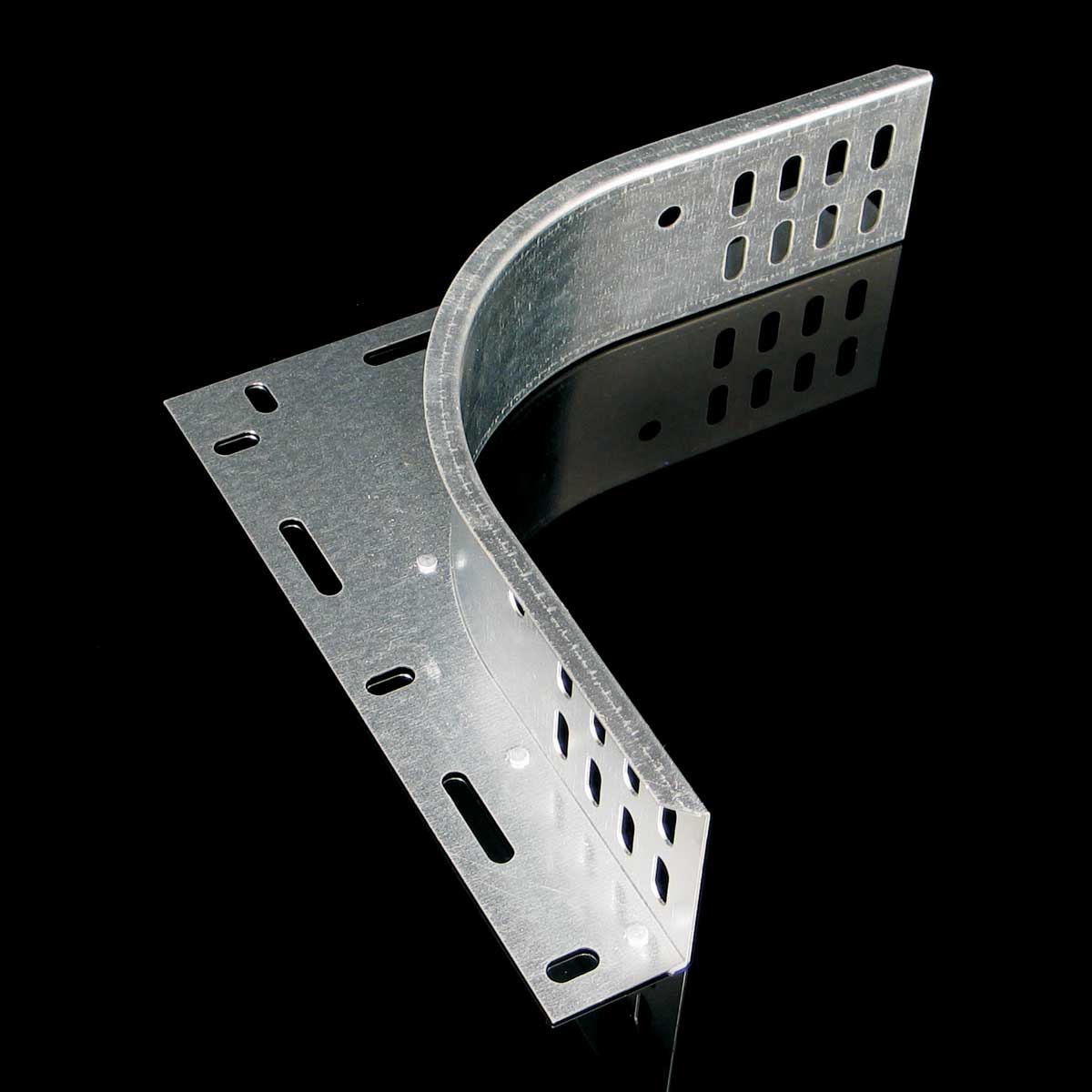

It is used for making an additional branching use an unequal T-piece or cross. Advantage of this using is availability to choose bending tray with any width. The reduction piece is delivered in singles, must be used 2 pieces for installation. The connection is performed using the bolts NSM 6X10. The cover of a horizontal VOH branch can be used to cover routes with a reduction piece.
