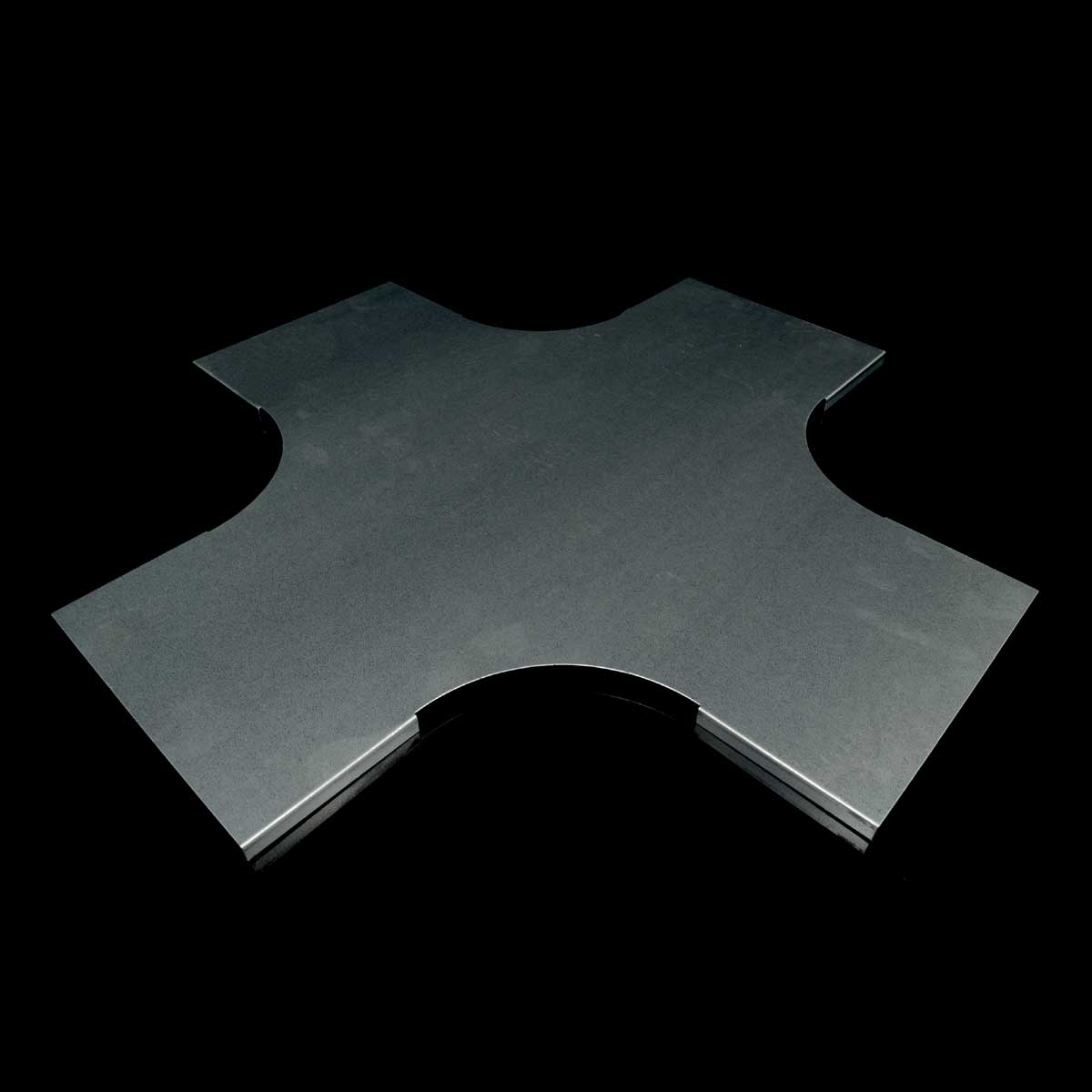

illustrative picture
To download 3D models, please login or create an account and request access.
VKR_EN
| EAN code | 8595057638082 |
| Customs code | 73089059 |
| წონა | 6,30 kg/pcs |
| Surface finish | Pre-Galvanized |
| Temperature resistance | -50 - 150 °C |
| Funcionality in fire | P90-R, E90, PS90 |
| Standards | ČSN EN 61537 |
| Fire resistance standards | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Thickness of metal sheet | 1 mm |

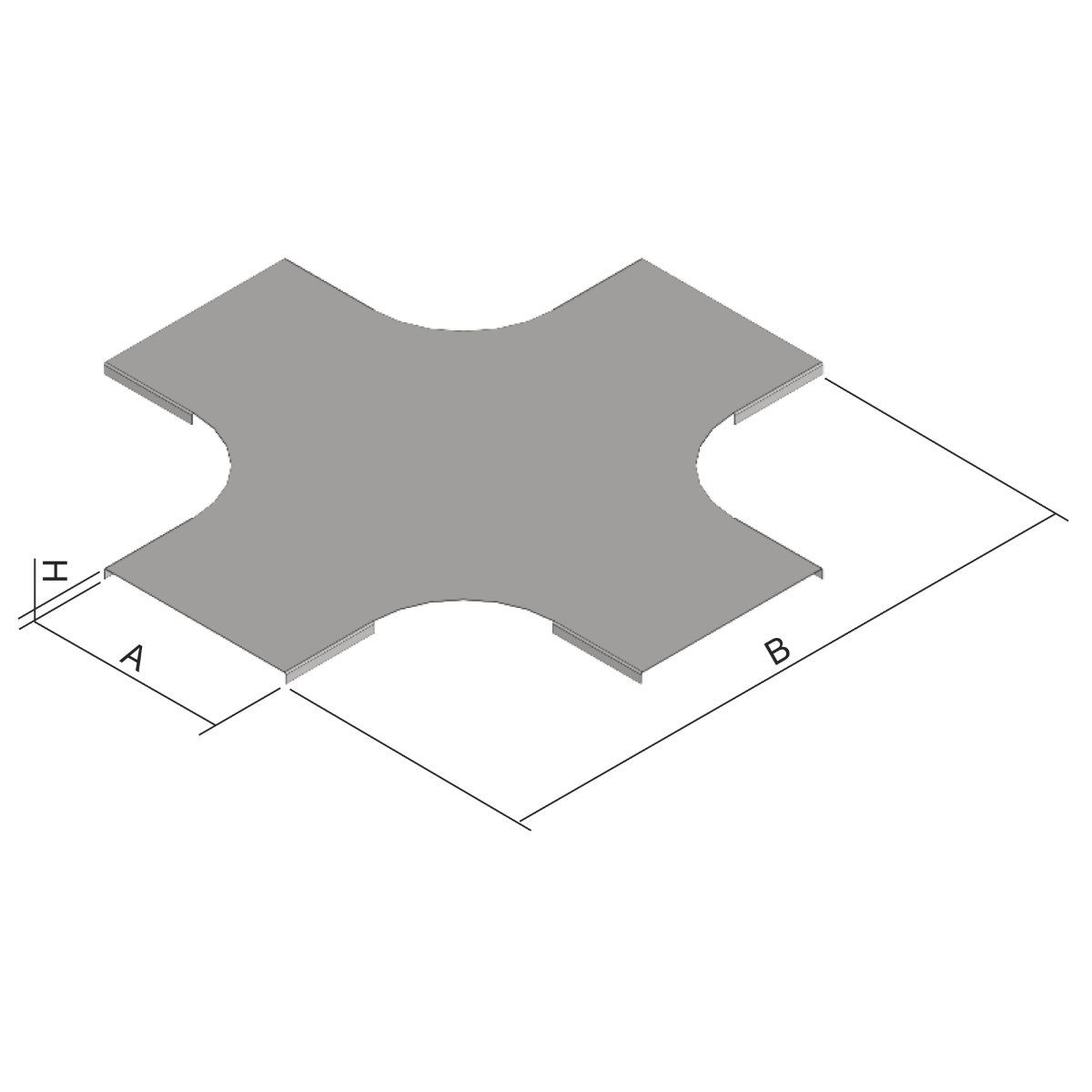

| Dimension A | 604 mm |
| Dimension B | 1003 mm |
| Dimension H | 15 mm |
| For width of cable tray | 600 mm |
To fix the cover use 8 pcs of cover fixture VU.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
