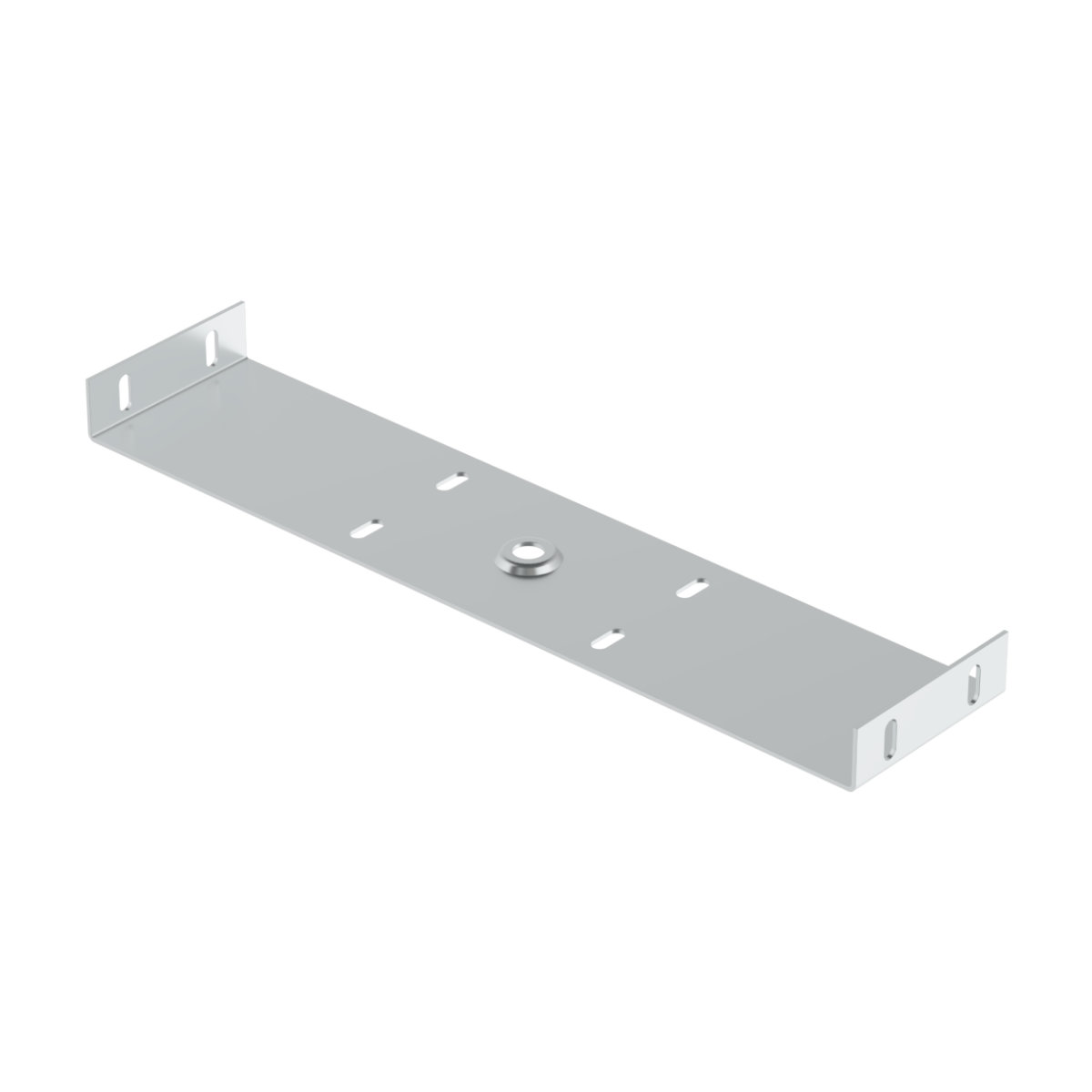

illustrative picture
To download 3D models, please login or create an account and request access.
ZVNI_EN
| EAN code | 8595568925404 |
| Customs code | 73269098 |
| წონა | 0,63 kg/pcs |
| Surface finish | Pre-Galvanized |
| Temperature resistance | -50 - 150 °C |
| Standards | ČSN EN 61537 |
| Thickness of metal sheet | 2 mm |
| Quantity of screws for connecting | 4 - 8 |
| Maximum load | 90 kg |
| Dimension A | 396 mm |
| For width of cable tray | 400 mm |
| For height of cable tray | 35 - 60 mm |
It is mounted using the threaded rod ZT 8 or ZT 10 and nut MN. The dimension of the nut is chosen by the diameter of the threaded rod. The nuts MN are not part of the hanger. The inner hinge is inserted into the tray before connecting it to another tray.
