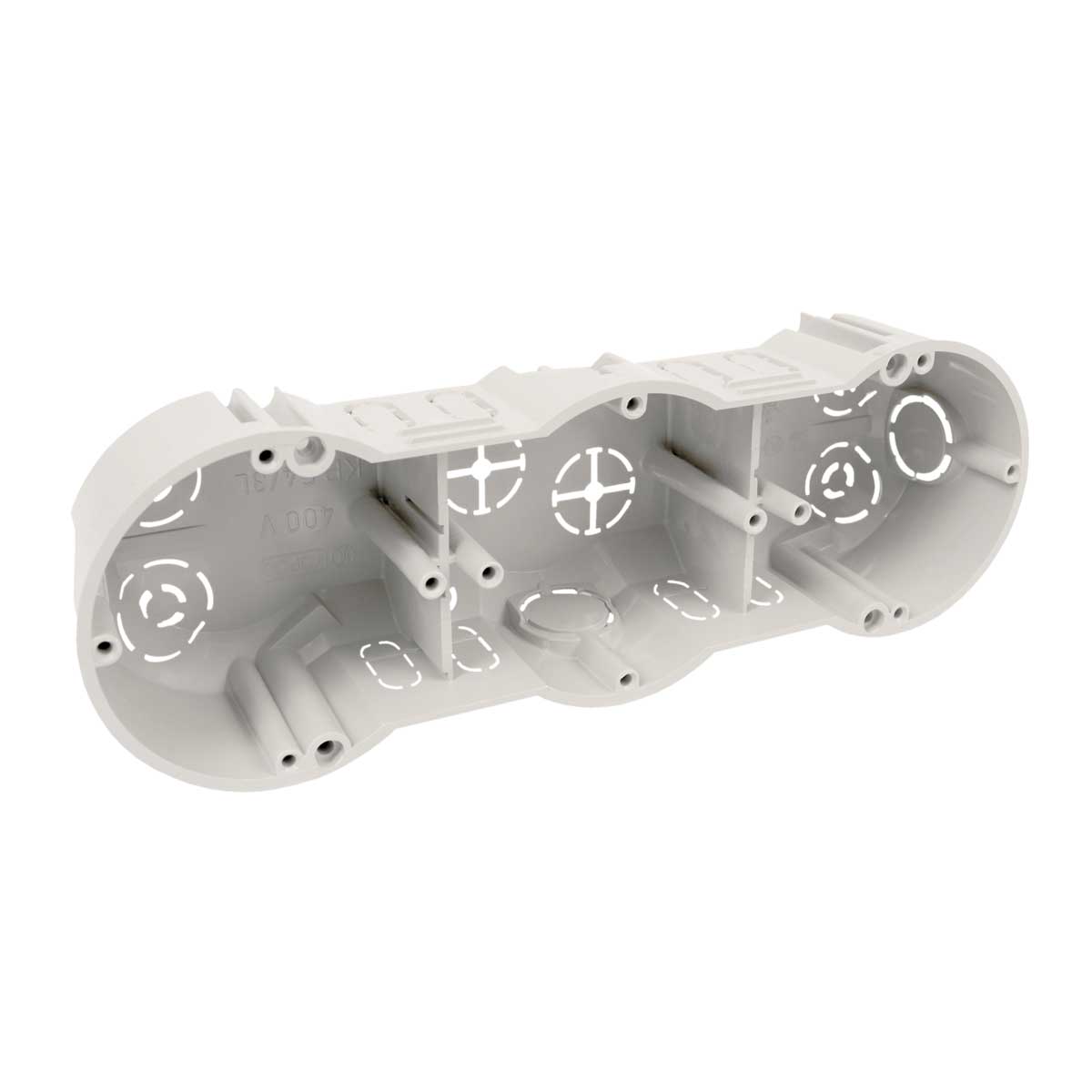

illustrative picture
To download 3D models, please login or create an account and request access.
| EAN code | 8595057632714 |
| Customs code | 39259080 |
| წონა | 0,0987 kg/ც |
| Material | PVC |
| Leadless material | yes |
| Self-extinguishing | 30 s |
| Rated voltage | <= 400 V |
| Rated current | <= 16 A |
| Temperature resistance | -5 - +60 °C |
| Flaming loop test | 850 °C |
| Width | 213 mm |
| Height | 71 mm |
| Depth | 45 mm |
| Milled (drilled) hole diameter | 80 mm |
| Fire reaction class of underlying material | A1 - D |
| Spacing when joining 2 boxes | 71 mm |
| Standards | ČSN EN 60 670-1 |
| Package description two boxes wrapped in shrink foil and marked with label, device screws for mounting in plasterboard including in a bag, packing including in a cardboard | |
For modern installations in combined frames. Significant rigidity makes device installation easier.
KP64_3_EN
