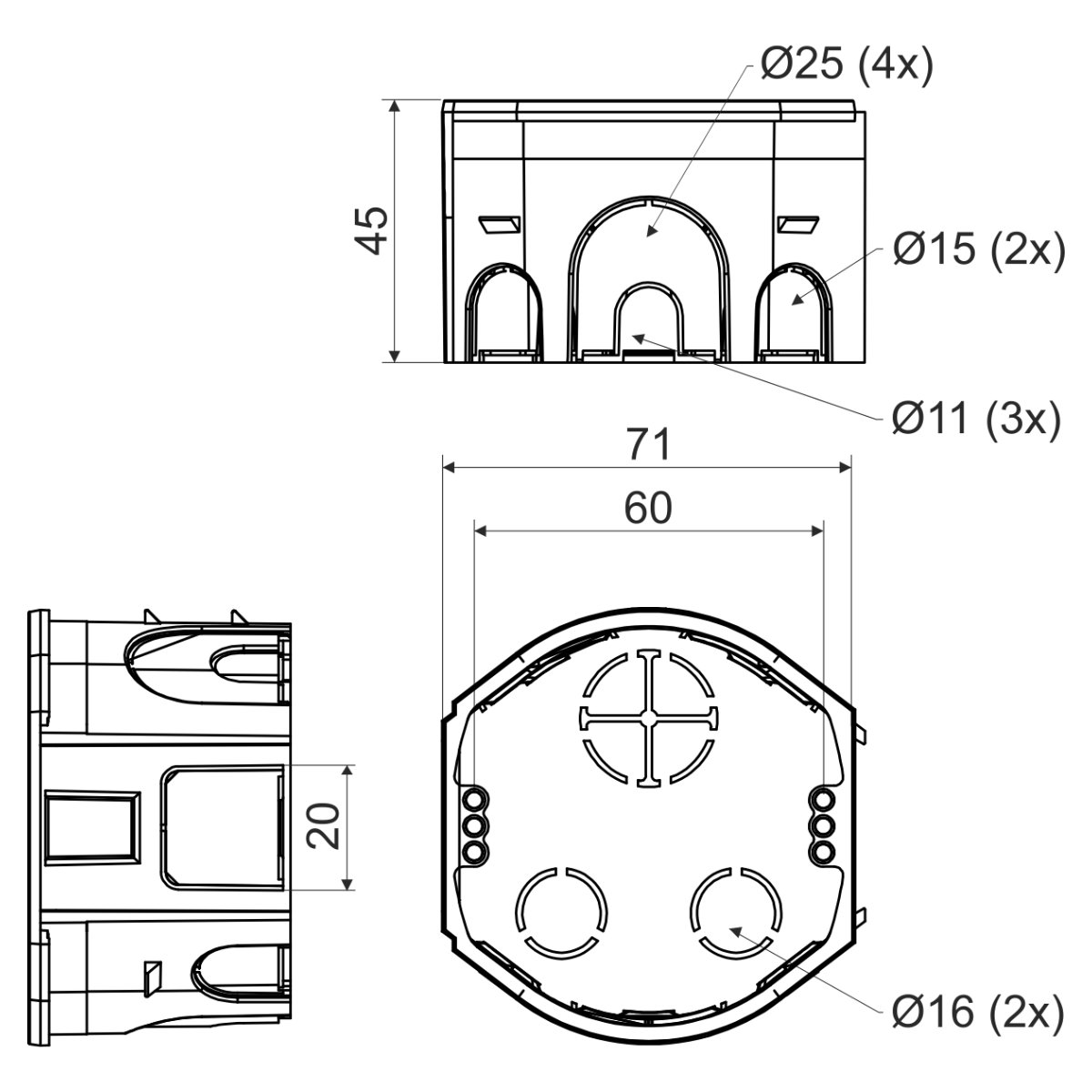

illustrative picture
KP68-45_EN
| EAN code | 8595568939678 |
| Customs code | 39259080 |
| წონა | 0,0266 kg/ც |
| Material | PVC |
| Leadless material | yes |
| Self-extinguishing | 30 s |
| Rated voltage | <= 400 V |
| Rated current | <= 16 A |
| Temperature resistance | -5 - +60 °C |
| Flaming loop test | 850 °C |
| Diameter | 73 mm |
| Depth | 45 mm |
| Milled (drilled) hole diameter | 80 mm |
| Fire reaction class of underlying material | A1 - D |
| Spacing when joining 2 boxes | 71 mm |
| Allows to install double-socket | yes |
| Standards | ČSN EN IEC 60 670-1 |
| Package description cartons freely in the cardboard, tool screws not mounted on the boxes | |
Connection in a continuous row with a spacing of 71 mm possible. The boxes can be connected to KP 68-30, KU 68-45, KPR 68-70, KP 68/D and KPR 68/D. More space for the electroinstallation. Protected by a European industrial design and Utility model trademark.
