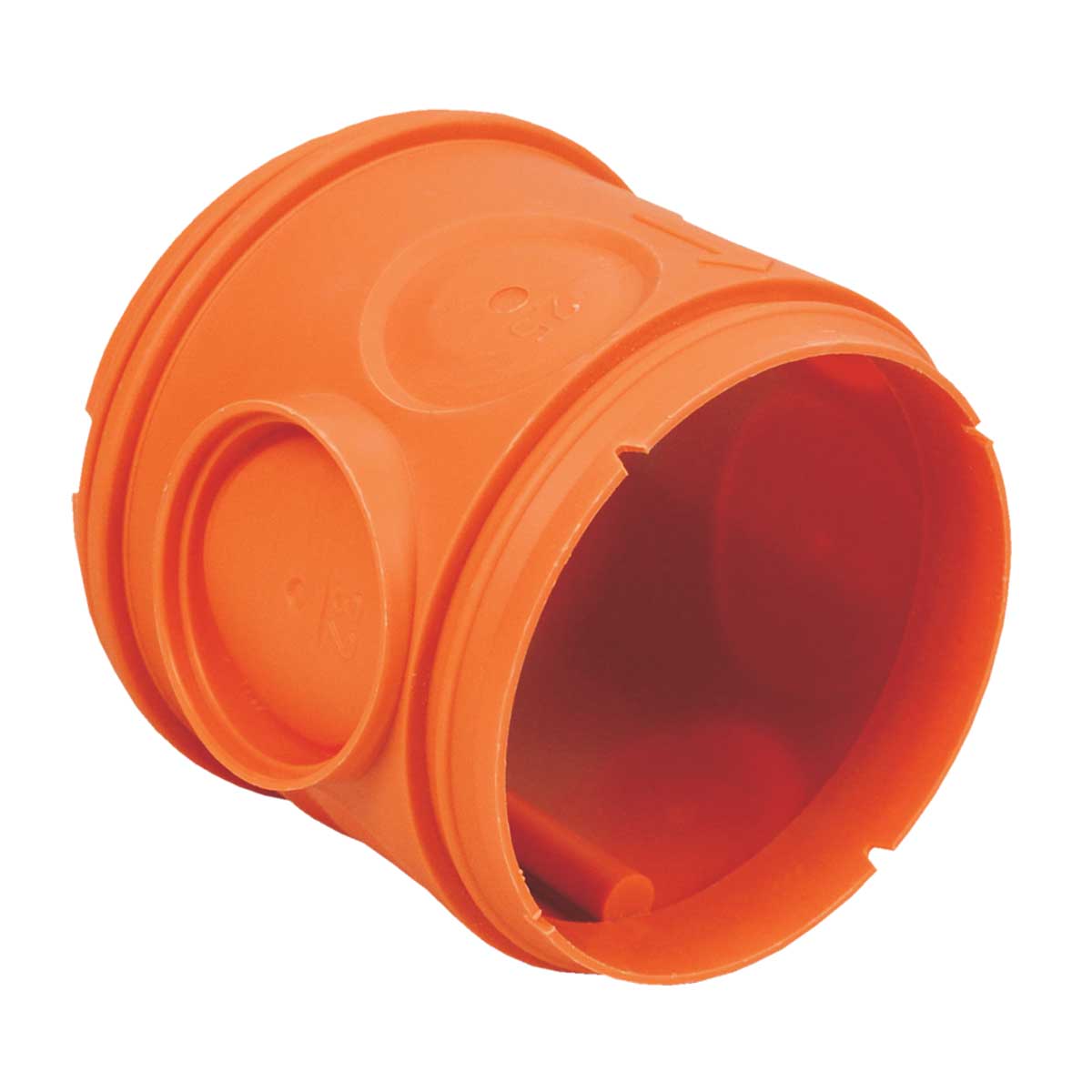

illustrative picture
To download 3D models, please login or create an account and request access.
KBT1_EN
| EAN code | 8595057632455 |
| Customs code | 39259080 |
| წონა | 0,05 kg/pcs |
| Colour | orange |
| Material | PP |
| Halogen free material | yes |
| Leadless material | yes |
| Rated voltage | <= 400 V |
| Temperature resistance | -5 - 60 °C |
| Short term temperature resistance | 90 °C |
| Flaming loop test | 650 °C |

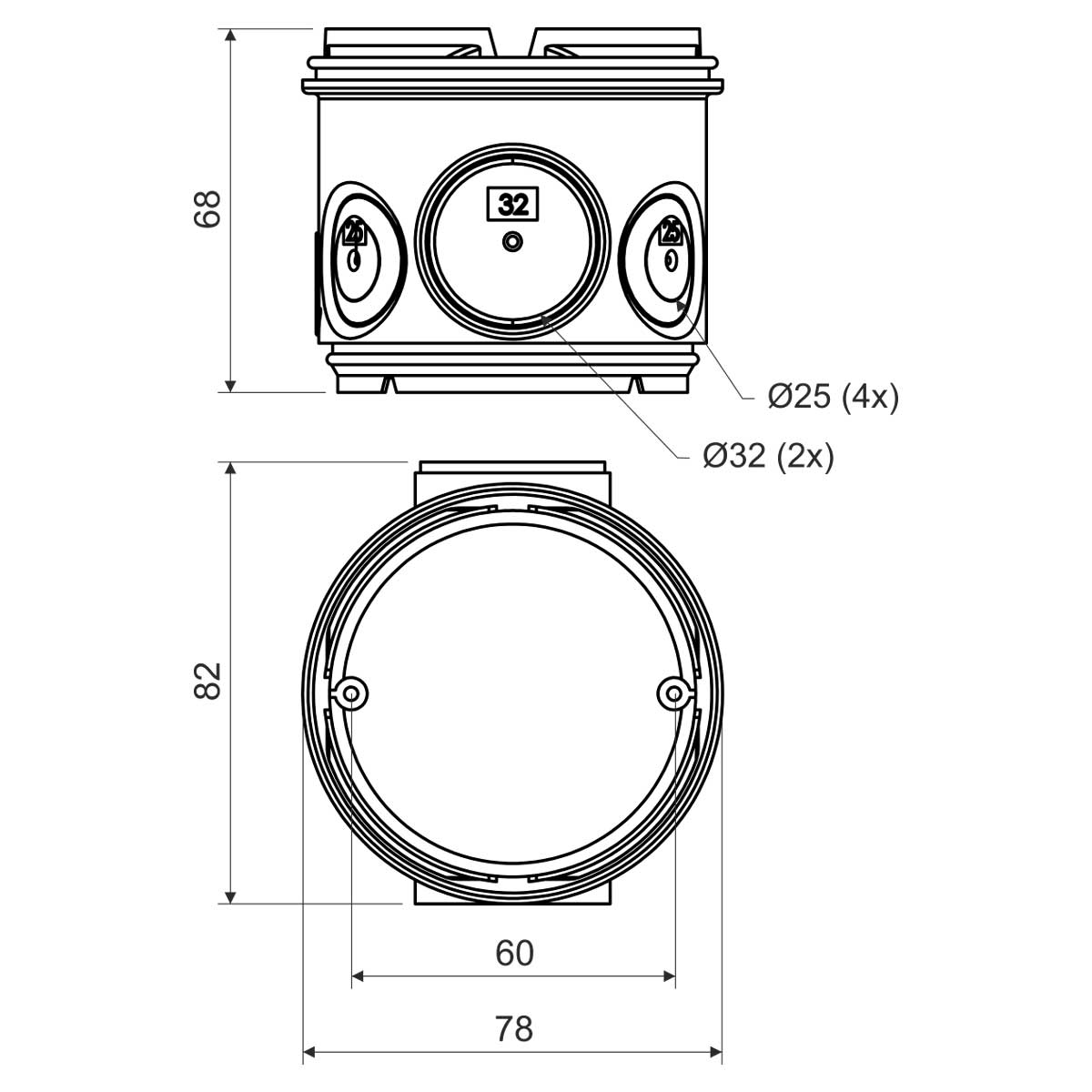

| Diameter | 78 mm |
| Depth | 68 mm |
| Fire reaction class of underlying material | A1 |
| Allows to install double-socket | yes |
| Standards | ČSN EN 60 670-1 |
| Package description | packed in shrink foil |
The body of the box is provided with a fixture for connection to the lid KBV and bottom KBS. The perimeter of the box body contains pre-marked holes to drill inlets for pipes of EN 25 and 32, inlets can easily be made in the desired locations using a drill and the respective drilling blade For devices with greater mounting depth. The box can be fitted with terminal plate S-66, we recommend its mounting to the box body before assembly. For the double-socket the KBV-1 lid is necessary.
