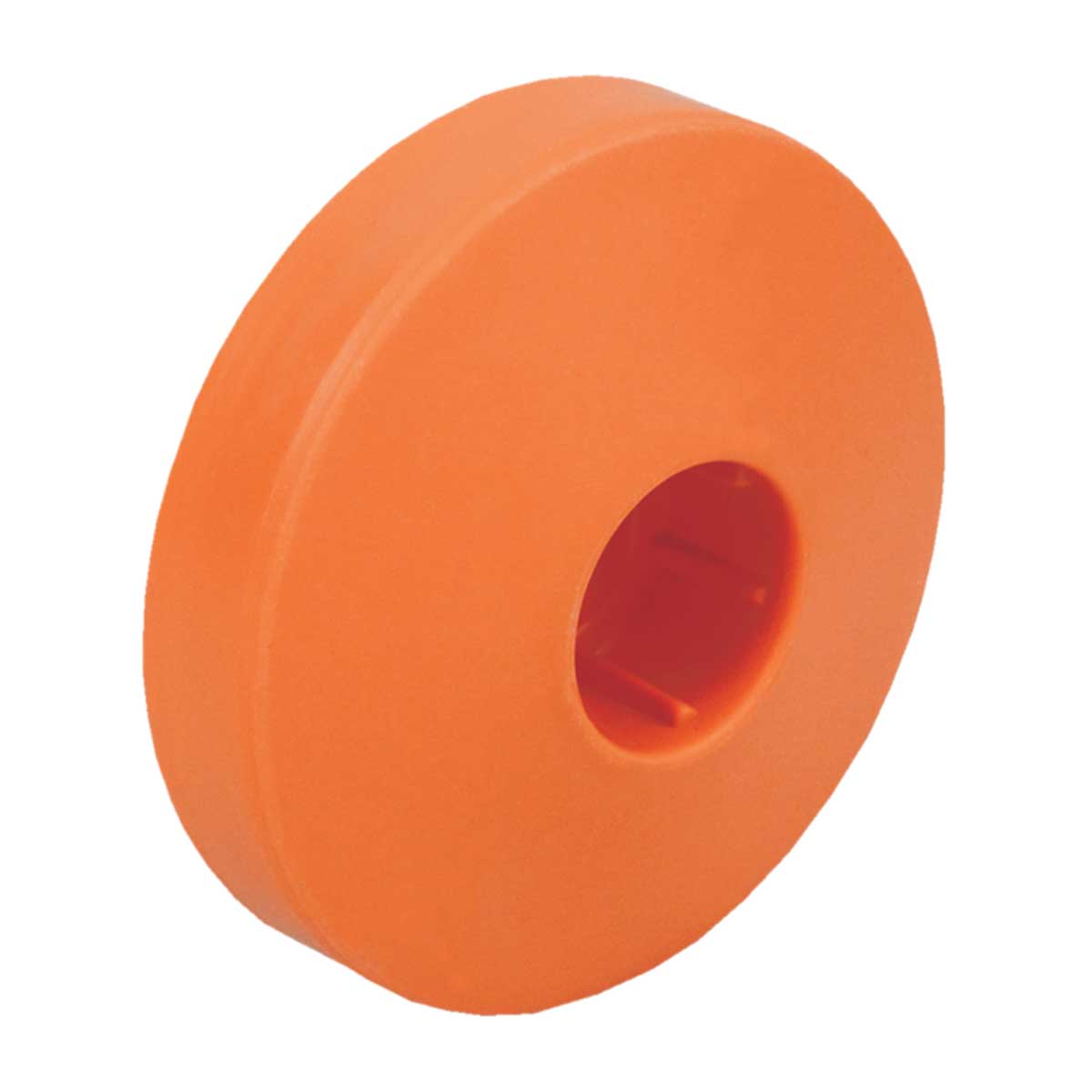

illustrative picture
To download 3D models, please login or create an account and request access.
KBS2_EN
| EAN code | 8595057632516 |
| Customs code | 39259080 |
| წონა | 0,02 kg/pcs |
| Colour | orange |
| Material | PP |
| Halogen free material | yes |
| Leadless material | yes |
| Rated voltage | <= 400 V |
| Temperature resistance | -5 - 60 °C |
| Short term temperature resistance | 90 °C |
| Flaming loop test | 650 °C |

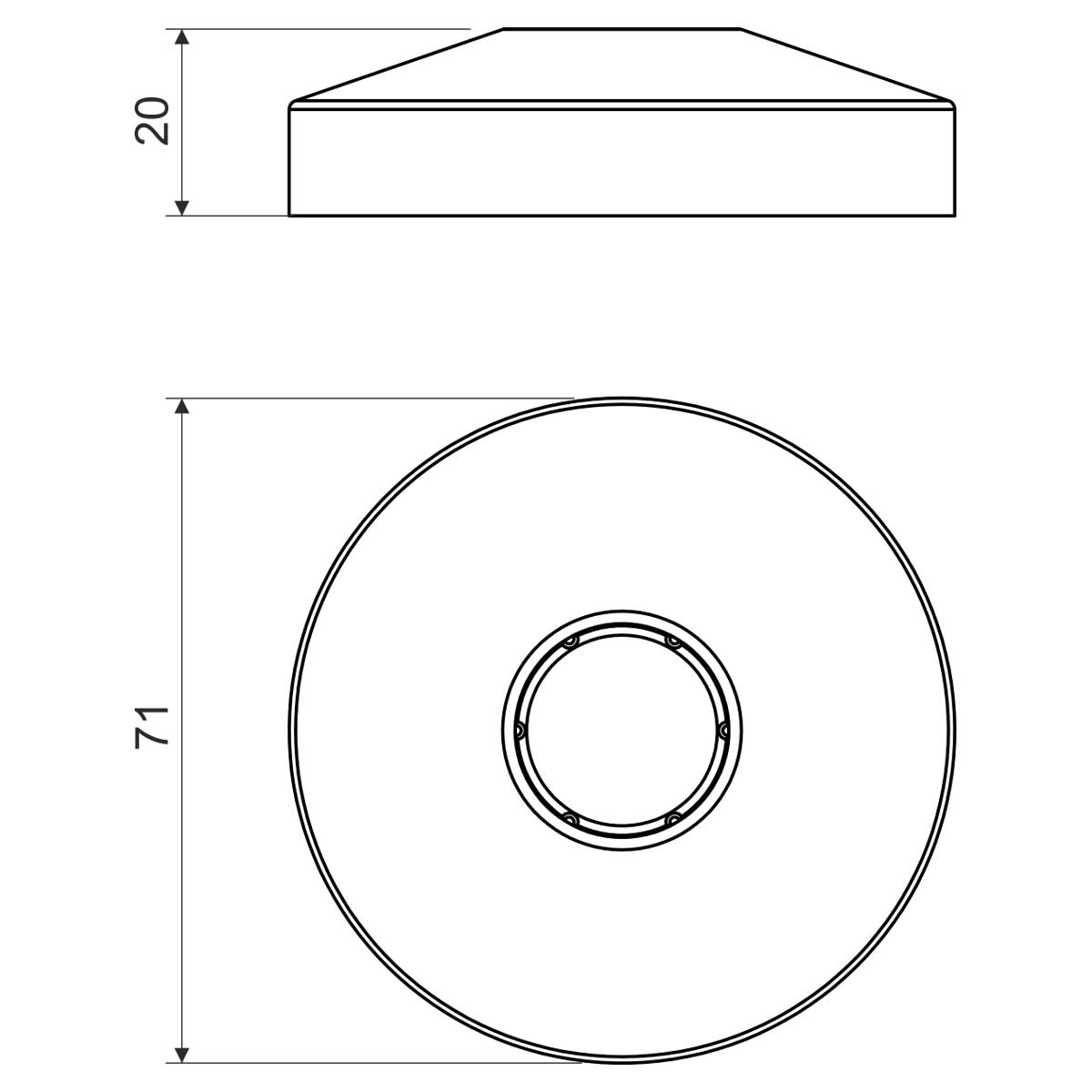

| Diameter | 71 mm |
| Depth | 20 mm |
| Fire reaction class of underlying material | A1 |
| Standards | ČSN EN 60 670-1 |
| Package description | packed in shrink foil |
The bottom is suitable for covering the bodies of boxes KBT-1 and KBT-2. The design of the bottom allows the insertion of a pipe of 20 mm in diameter. inserted pipe can be used to interconnect the boxes.
