EAN code8595057632462
Customs code39259080
წონა0,0215 kg/pcs
Colourorange
MaterialPP
Halogen free materialyes
Leadless materialyes
Rated voltage<= 400 V
Temperature resistance-5 - 60 °C
Short term temperature resistance90 °C
Flaming loop test650 °C

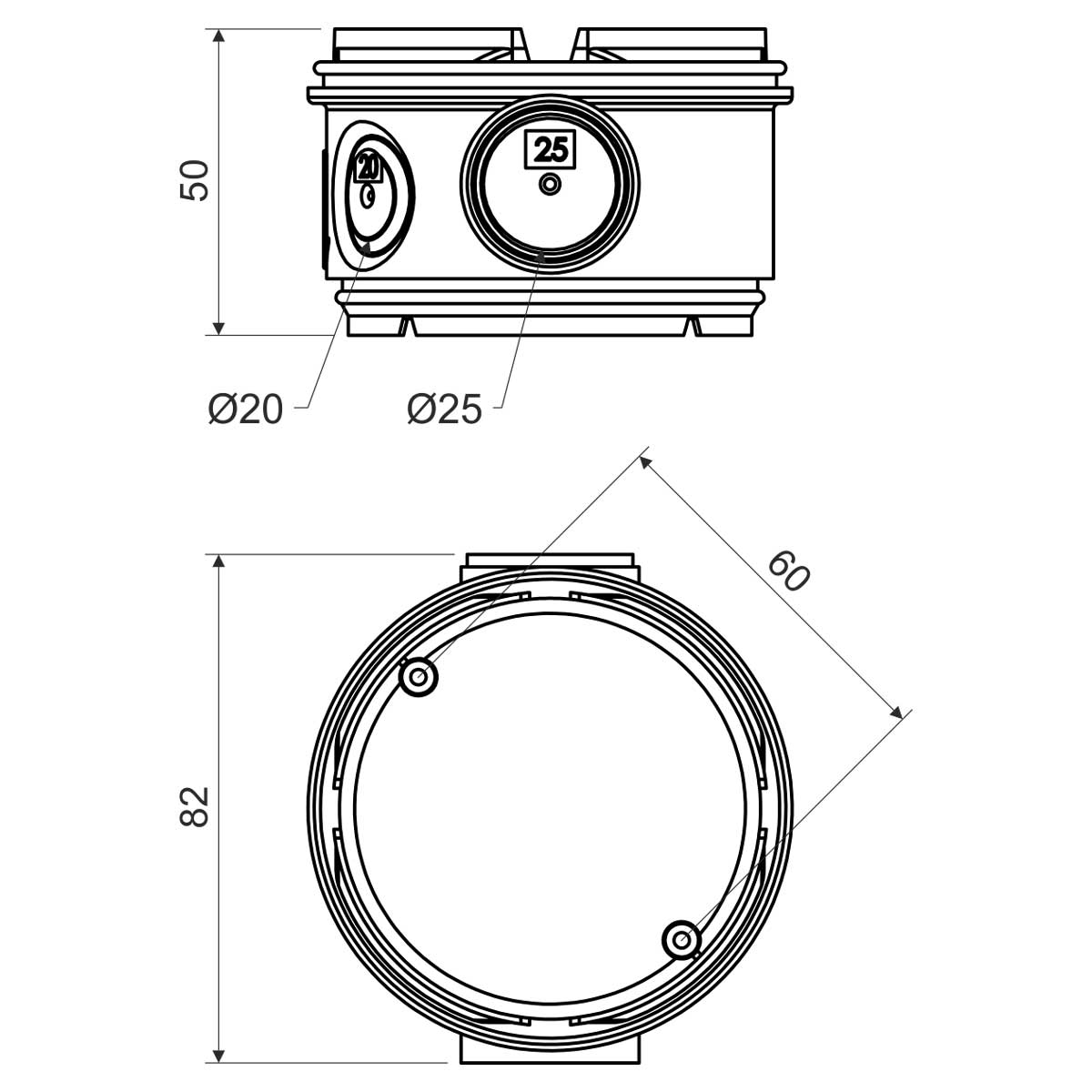

Diameter78 mm
Depth50 mm
Fire reaction class of underlying materialA1
Allows to install double-socketyes
StandardsČSN EN 60 670-1
Package descriptionpacked in shrink foil

The body of the box is provided with a fixture for connection to the lid KBV and bottom KBS. The perimeter of the box body contains pre-marked holes to drill inlets for pipes of EN 20 and 25, inlets can easily be made in the desired locations using a drill and the respective drilling blade. The box can be fitted with terminal plate S-66, we recommend its mounting to the box body before assembly. For the double-socket the KBV-1 lid is necessary.
