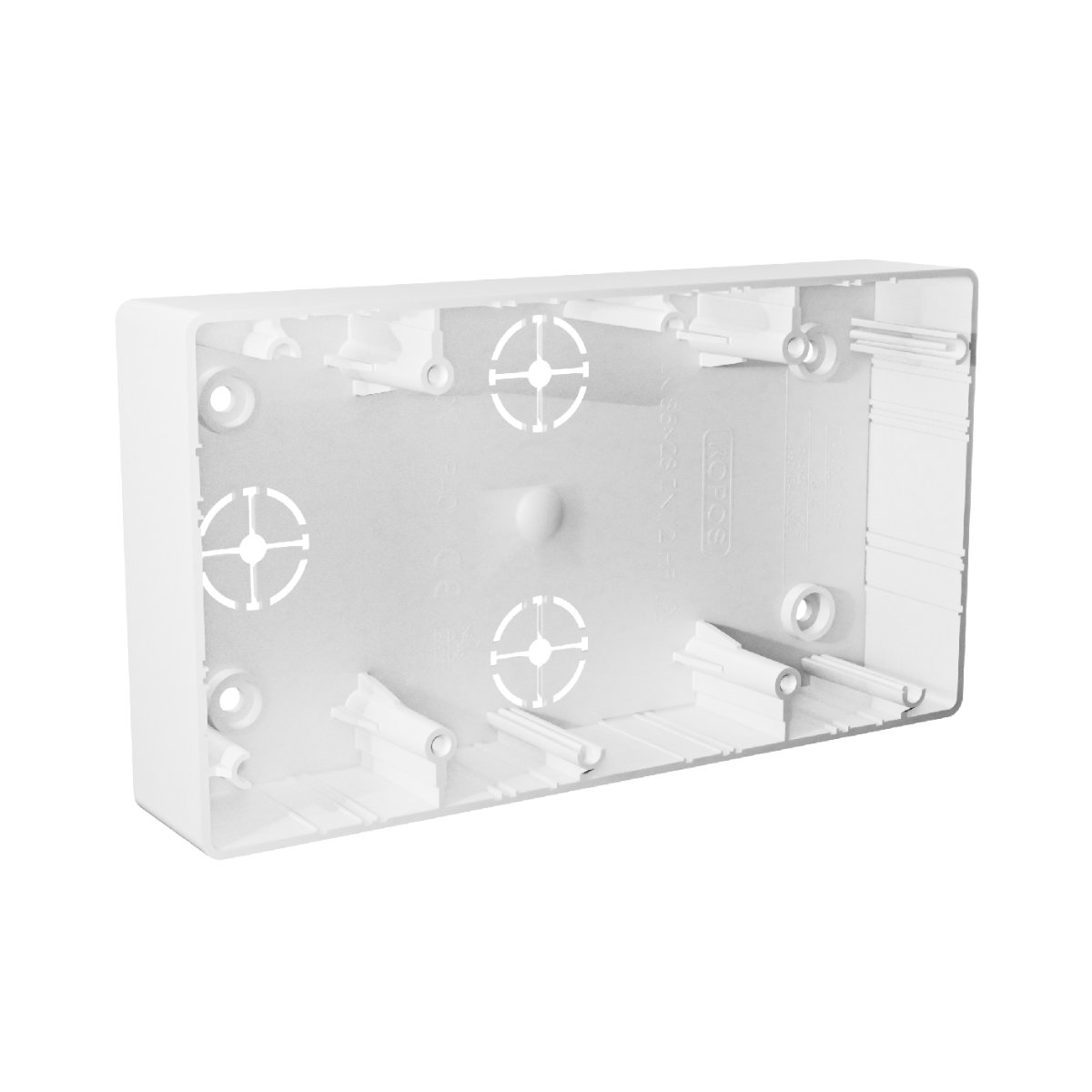

illustrative picture
LK85X28ZNI2_HF_EN
| EAN code | 8595568942104 |
| Customs code | 39259080 |
| წონა | 0,0519 kg/ც |
| Colour | white |
| Material | PC-ABS |
| Leadless material | yes |
| Self-extinguishing | 30 s |
| Rated voltage | <= 400 V |
| Rated current | <= 16 A |
| Temperature resistance | -5 - +60 °C |
| Flaming loop test | 850 °C |

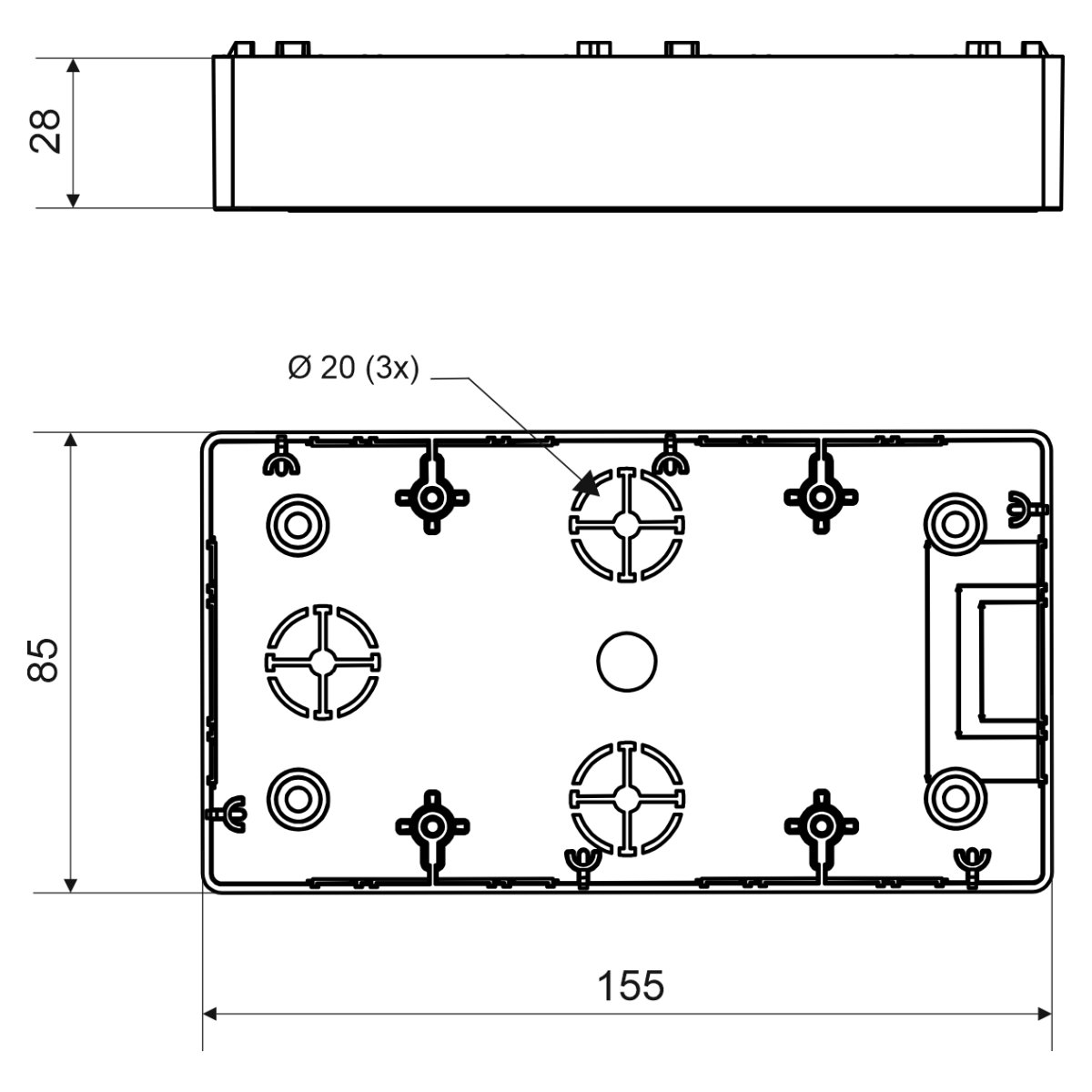

| Width | 155 mm |
| Height | 85 mm |
| Depth | 28 mm |
| Fire reaction class of underlying material | A1 - D |
| Extending reaction to fire of underlying material Combined with a 5 mm thermal insulation pad, installation on flammable substrates can be carried out without limitation of the reaction to fire class A1 - F | |
| Standards | ČSN EN 60 670-1 |
| Package description the boxes are packed in a shrink foil of 10 pieces and the screws are enclosed | |
Trunking box designed for devices from the ABB Zoni product line, offering large installation depth. Suitable for installation on materials with reaction-to-fire classes A1 to D. The box is equipped with fixing posts to ensure accurate device positioning.
