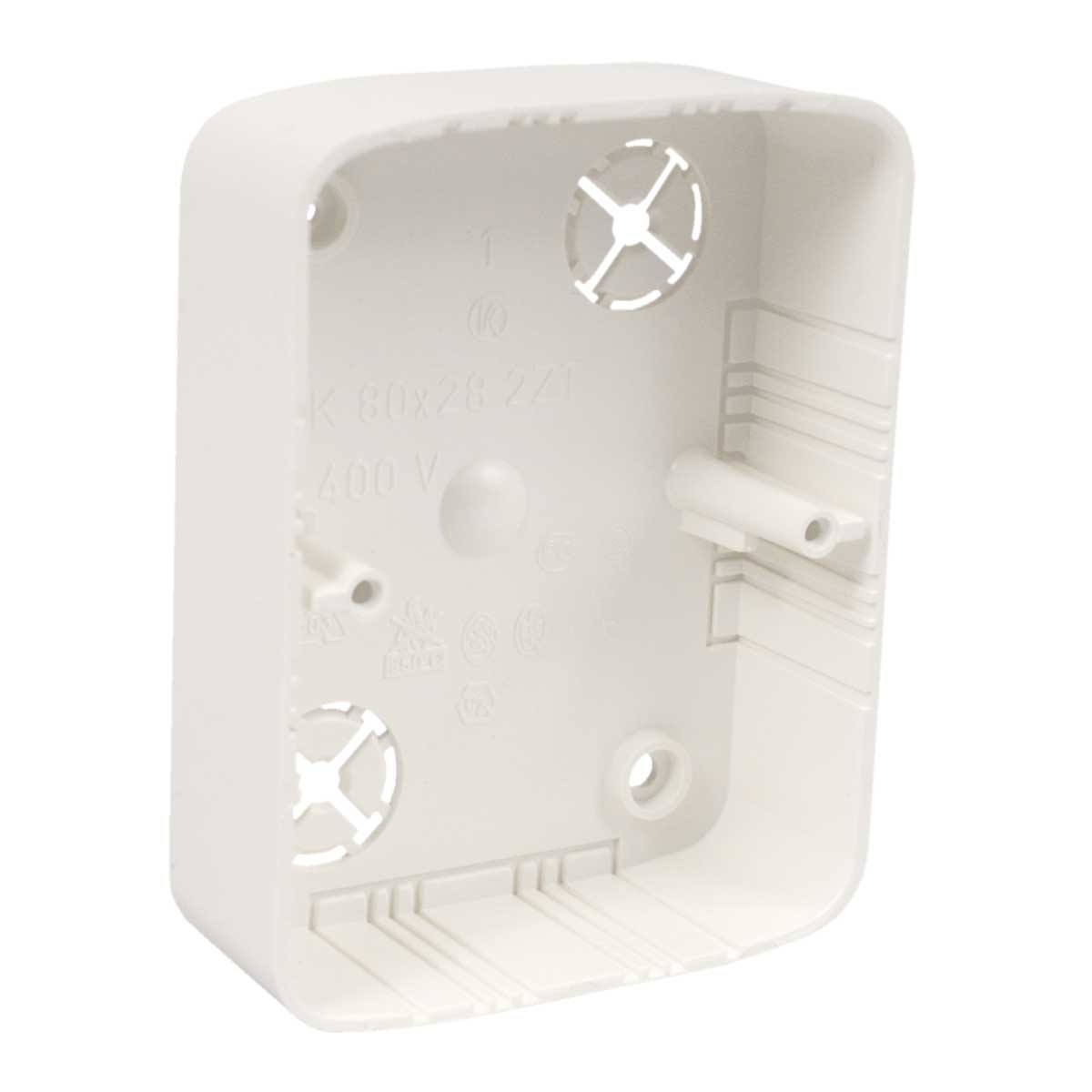

illustrative picture
To download 3D models, please login or create an account and request access.
LK80X28_2ZTHF_EN
| EAN code | 8595057634145 |
| Customs code | 39259080 |
| წონა | 0,0420 kg/ც |
| Colour | white |
| Material | PC-ABS |
| Halogen free material | yes |
| Leadless material | yes |
| Self-extinguishing | 30 s |
| Rated voltage | <= 400 V |
| Rated current | <= 16 A |
| Temperature resistance | -20 - +80 °C |
| Flaming loop test | 850 °C |
| Width | 81 mm |
| Height | 105 mm |
| Depth | 28 mm |
| Fire reaction class of underlying material | A1 - D |
| Extending reaction to fire of underlying material Combined with a 5 mm thermal insulation pad, installation on flammable substrates can be carried out without limitation of the reaction to fire class A1 - F | |
| Allows to install double-socket | yes |
| Standards | ČSN EN 60 670-1 |
For premises with increased need for protection of persons and property. Intended for double-sockets of Tango series - ABB with high assembling depth. To install on materials with fire classes E or F, use insulating pad.
