EAN code8595057618374
Customs code85389099
წონა0,2450 kg/pcs
MaterialPA6
Self-extinguishing30 s
Temperature resistance-30 - 105 °C
Flaming loop test850 °C
Width126 mm
Height50 mm
Depth60 mm
Cross-section of the connected conductor4 x 2,5 - 6; 6 x 4 - 16; 2 x 10 - 95; 1 x 30 x 4 (strap)
Fire reaction class of underlying materialA1 - F
Package descriptionwithout lid

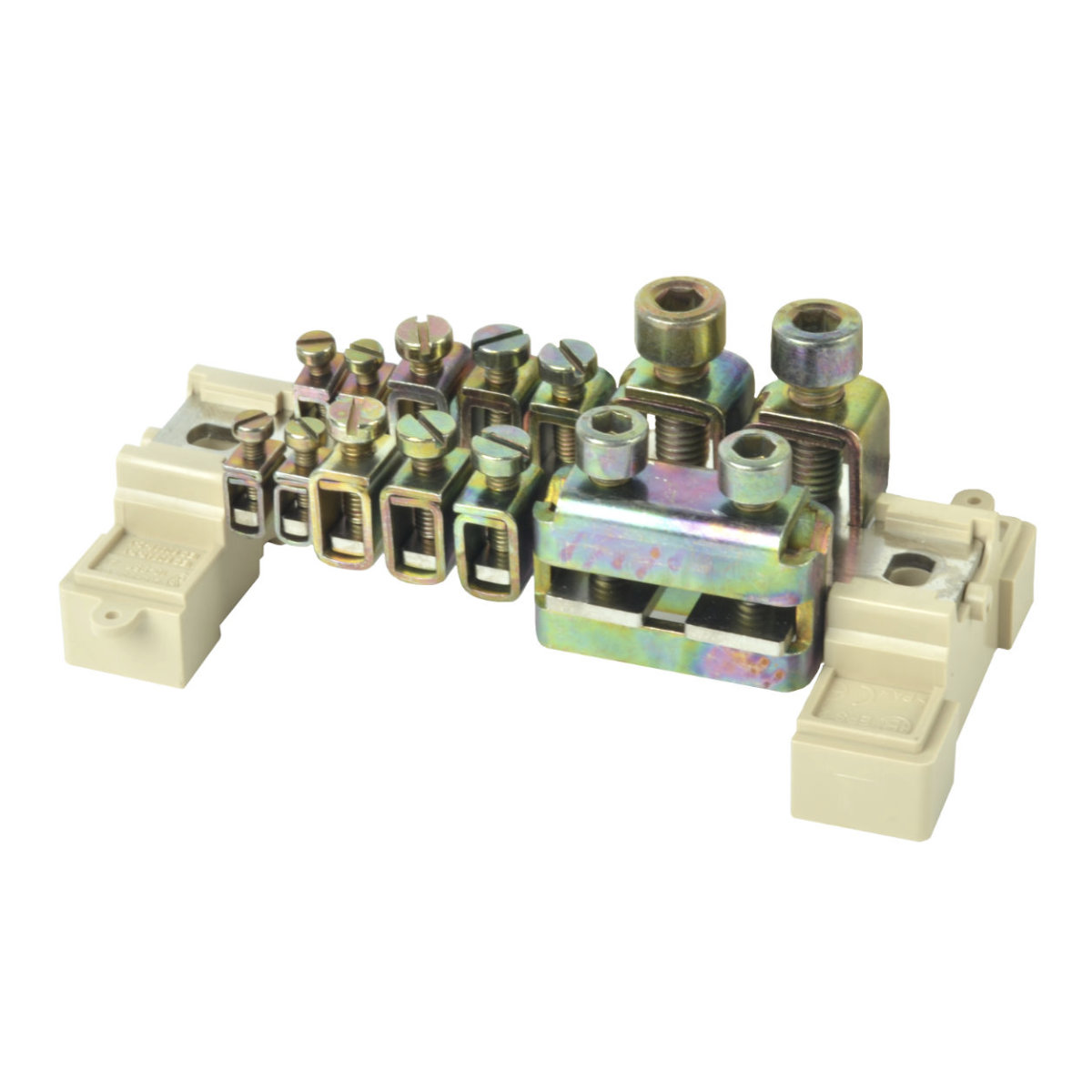

Used for main connection according to ČSN 1-35 2000-4-41. Bonding. Use only for bonding the zero potential, cannot be used as a phase connection etc. Can be used in the box KO 125 E - the box is specially adapted for mounting. Possibility to install also in boxes KT 250/1 and KT 250/L.
