EAN code8595057660366
Customs code73269098
წონა0,1610 kg/pcs
Surface finishHot Dip Galvanized
Temperature resistance-50 - 150 °C
StandardsČSN EN 61537
Thickness of metal sheet1 mm
Quantity of screws for connecting4

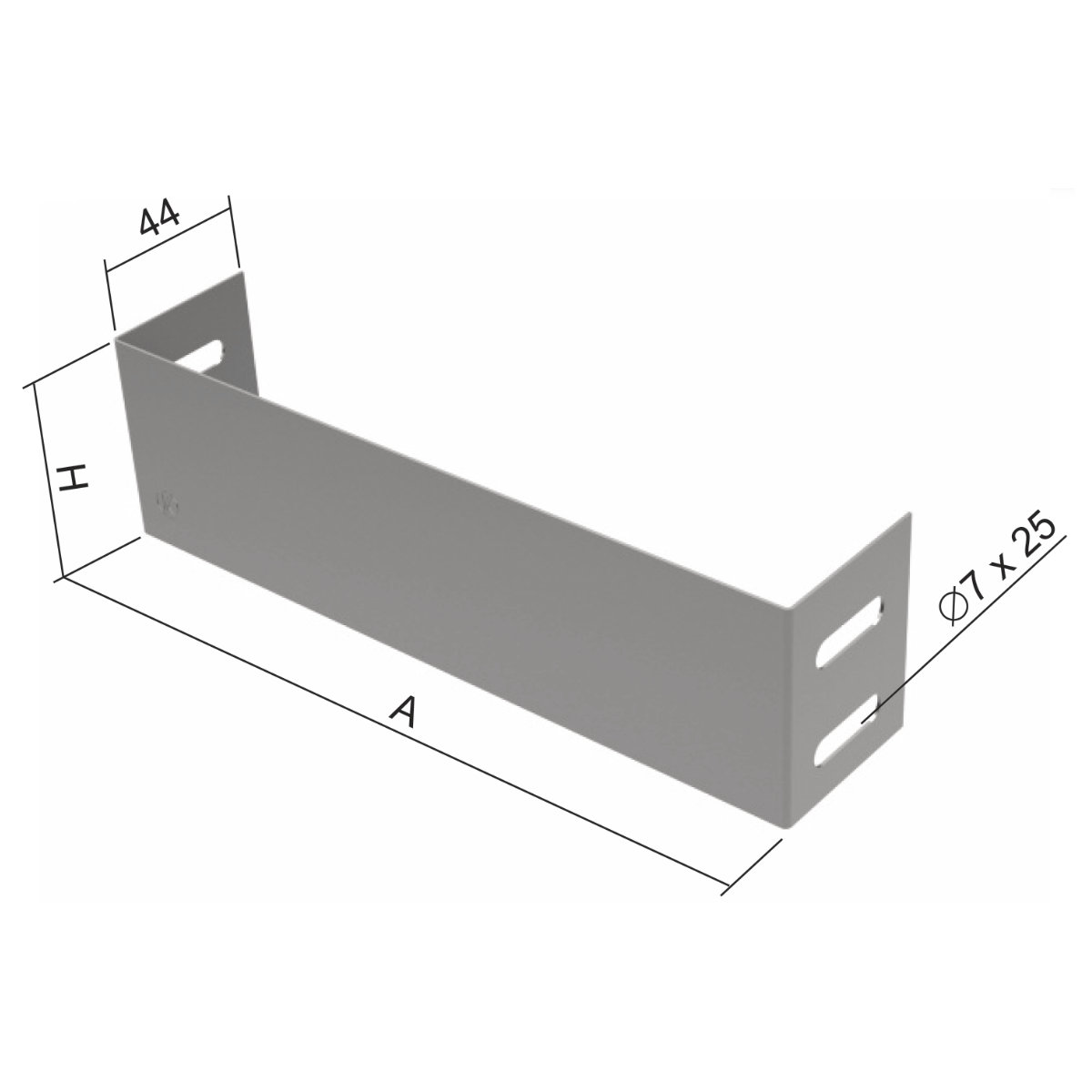

Dimension A147 mm
Dimension H80 mm
For width of cable tray150 mm
For height of cable tray85 mm

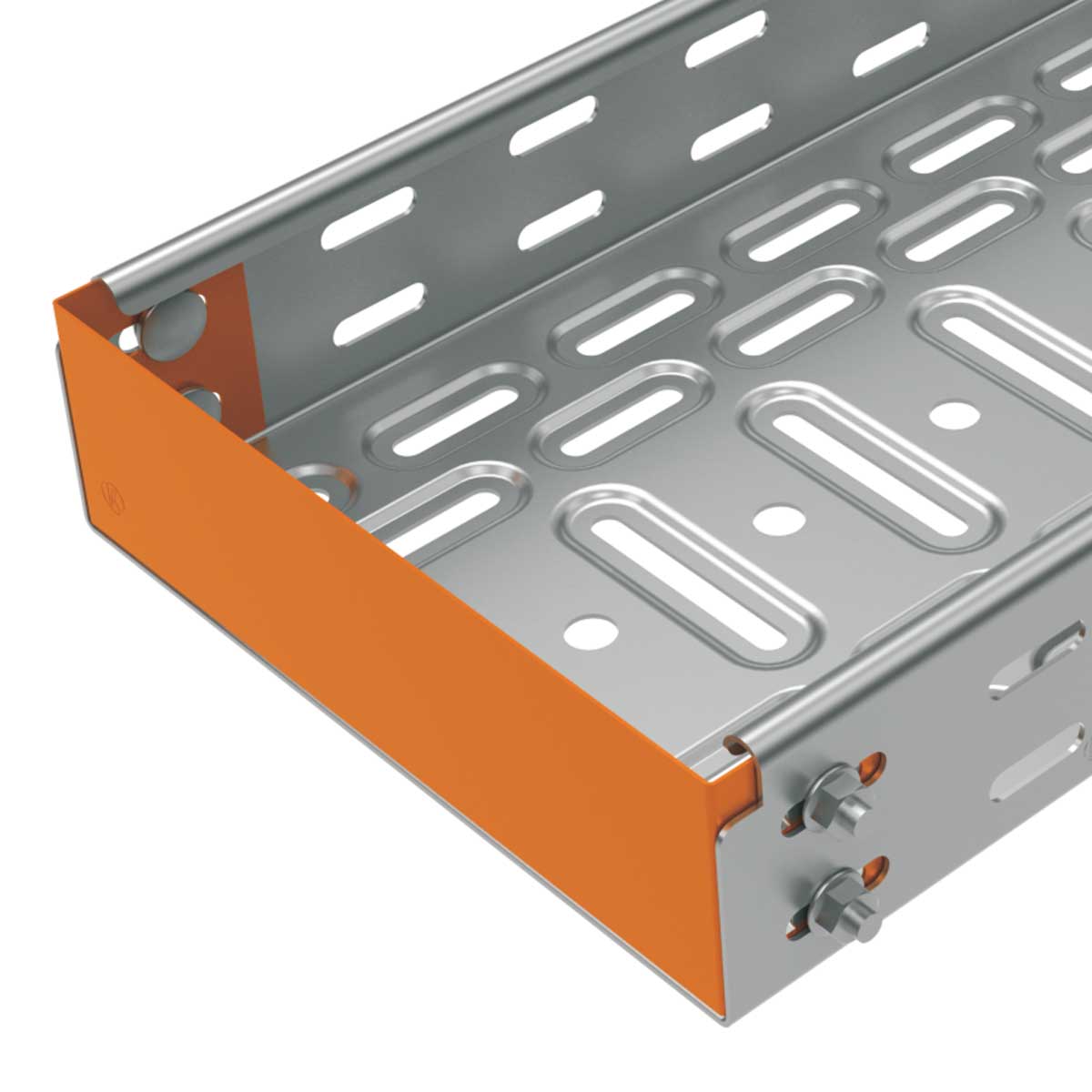

The fastening of the joint is performed with the bolts NSM 6X10.
