illustrative picture
To download 3D models, please login or create an account and request access.
KLT_EN
| EAN code | 8595057644588 |
| Customs code | 73089059 |
| წონა | 7,97 kg/pcs |
| Surface finish | Pre-Galvanized |
| Temperature resistance | -50 - 150 °C |
| Standards | ČSN EN 61537 |
| Thickness of metal sheet | 1,2 - 1,5 mm |
| Quantity of screws for connecting | 48 |

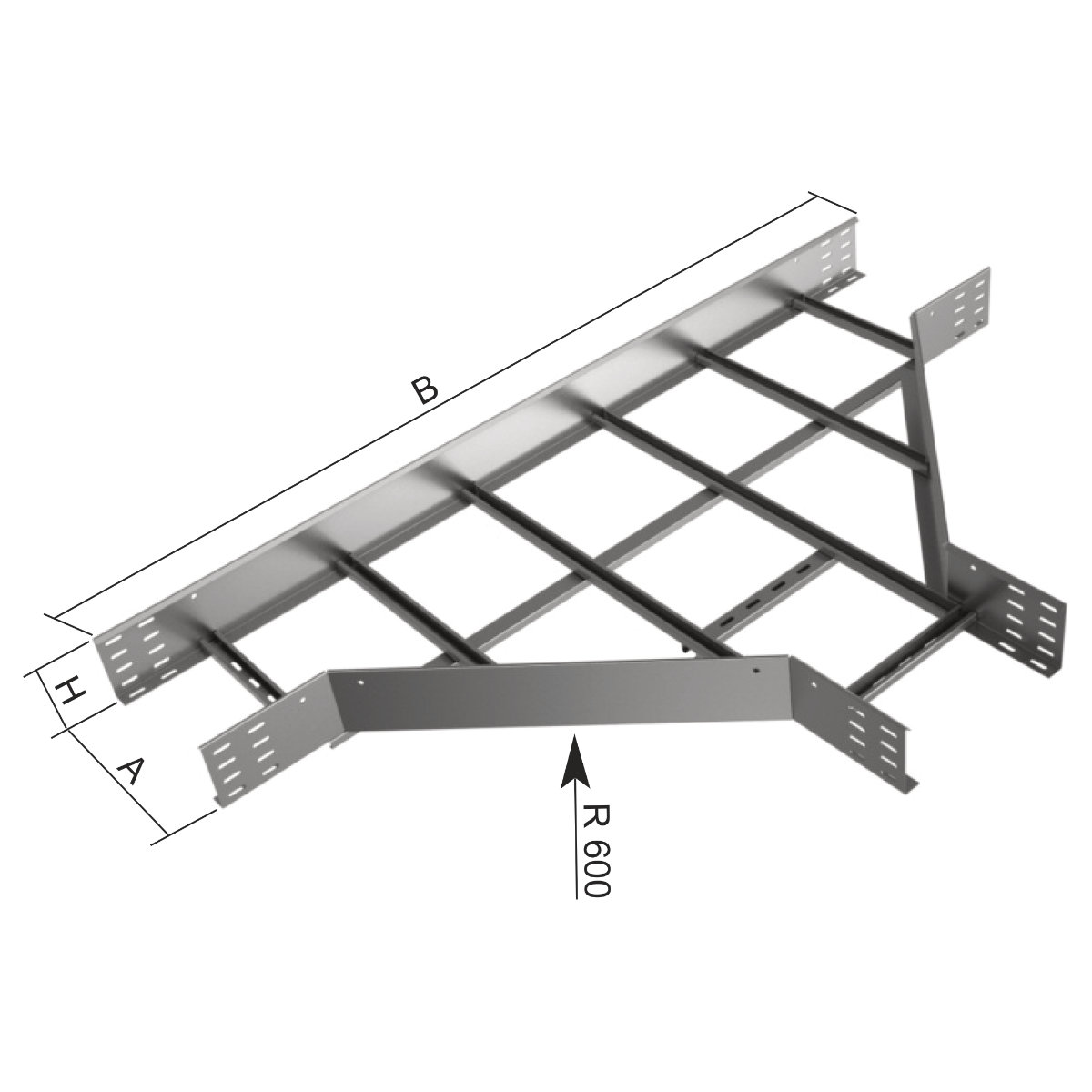

| Dimension A | 200 mm |
| Dimension B | 1400 mm |
| Dimension H | 110 mm |
The connection of the T-piece with the ladder is performed by using the 6 pcs couplings S 110X200 and the 48 pcs bolts NSM 6X10.
