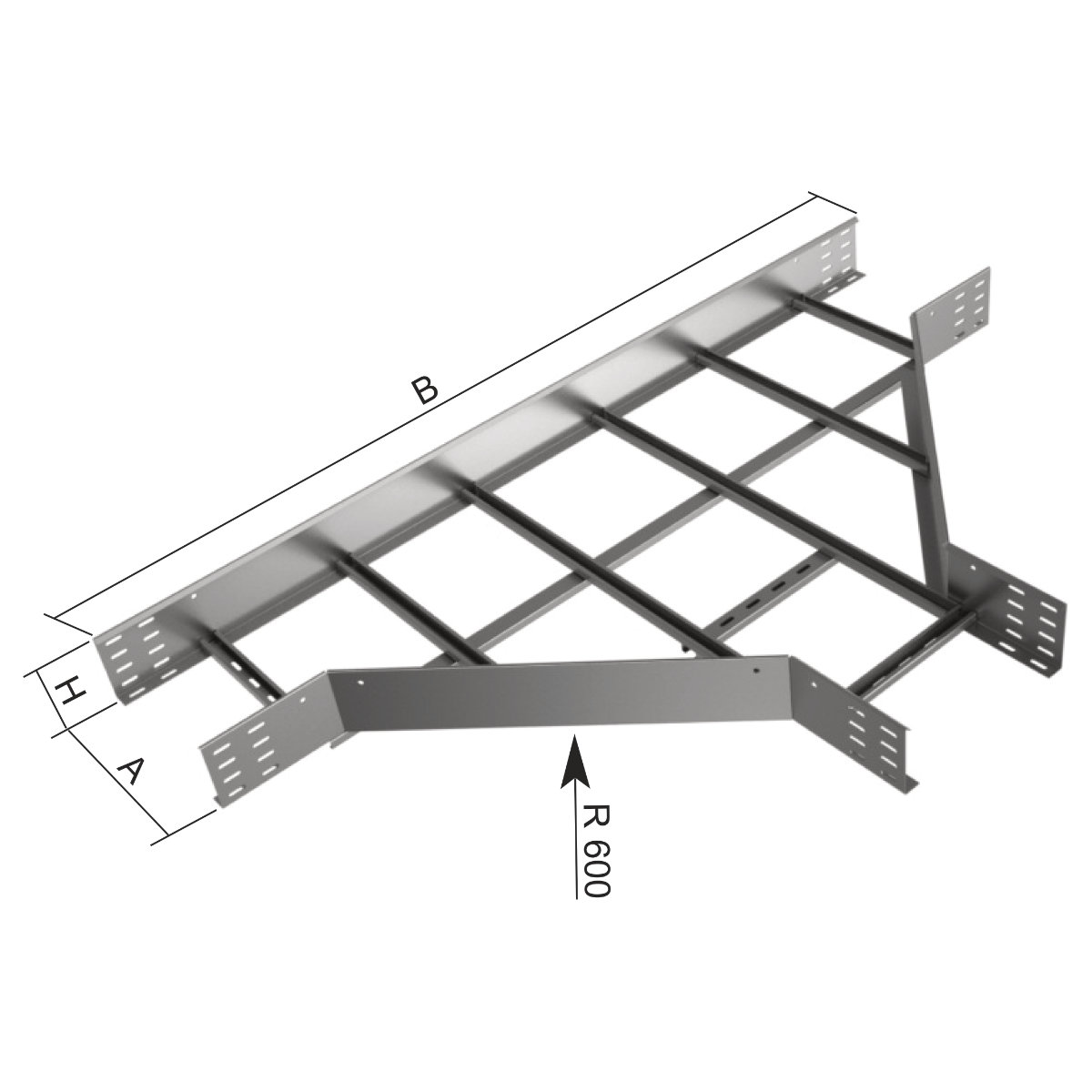

illustrative picture
To download 3D models, please login or create an account and request access.
KLT_EN
| EAN code | 8595057661530 |
| Customs code | 73089059 |
| წონა | 9,7590 kg/ც |
| Surface finish | Hot Dip Galvanized |
| Temperature resistance | -50 - +150 °C |
| Standards | ČSN EN 61537 |
| Thickness of metal sheet | 1,2 - 1,5 mm |
| Quantity of screws for connecting | 48 |
| Dimension A | 300 mm |
| Dimension B | 1500 mm |
| Dimension H | 110 mm |
The connection of the T-piece with the ladder is performed by using the 6 pcs couplings S 110X200 and the 48 pcs bolts NSM 6X10.
